| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Customized P/M parts |
| Minimum Order Quantity: | 2,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard exporting package |
| Delivery Time: | One month after technical details are confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Bottom Valve | Material: | Iron Based Or Others |
|---|---|---|---|
| Press Machine: | 100T - 200T | Key Size: | 100% Inspected |
| Application: | Car Shocks | Plating: | Customized |
| Sample Time: | One Month | Surface: | Rust-preventive |
| High Light: | different slope shock absorber components,100T shock absorber components |
||

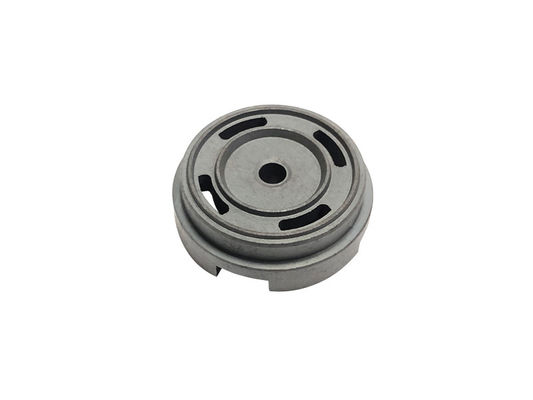

Different Slope Front Shock Absorber Foot Valve With Die Mould Design In House
Details:
Place of origin:Zhe Jiang, China
Type:shock absorber(oil-filled)
Position:rear
Material: iron powder metallurgy
Density:6.2-6.8g/cm3
Hardness:HRB80-110 with steam treatment
Specifications:
|
Item |
Powder Metallurgy bottom valve |
|
Tolerance |
According to the drawings |
|
Surface finishes |
polishing, heat treatment |
|
QC equipment |
Three-D machine, Projector, caliper, height gage |
|
QC system |
100% inspection before shipment |
|
Processing Technical |
CNC machining, CNC milling, CNC turning, EDM, Stamping, Forging, Casting, Punching, Drilling, Broaching |
Description:
Product Name: Shock Absorber base valve, foot valve
Raw Materials MPIF FC-0205 or FC-0208
Features:
1. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm
2. Full line products for shock absorber, including powder metallurgy piston, rod guide, Foot valve, PTFE
band for piston, Du bearing for rod guide.
3. PPAP III is submitted accordingly.
Application: Car shock absorber, Motorcycle shock absorber
Processing: Mixing powder— Forming— Sintering— Sizing— After treatment— Steam treatment— Oil
impregnant— Packing— Shipping
Manufacture ability
1. Auto Mechanical Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching
5. Ultrasonic clearing and auto de-burring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.
Test Ability
1. Carbon sulfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profile meter
9. CMM
Applications:
Automotive Part
Motorcycle Part
Metal Powder Sintered Parts
Locomotive Parts
Machinery Parts
Tool Parts
Competitive Advantage:
1.High precision
2.100% quality with competitive price
3.Good abrasion resistance
4.High efficiency
5.Save energy
Picture show:
 |
|
