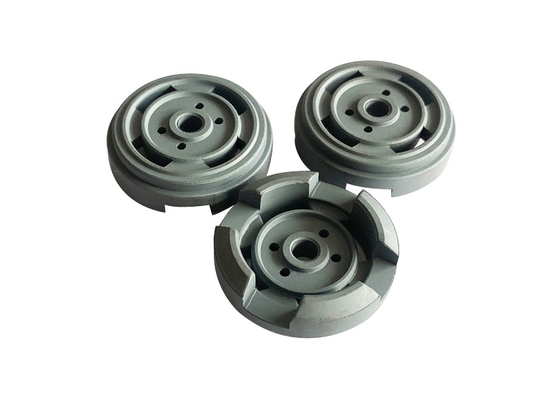

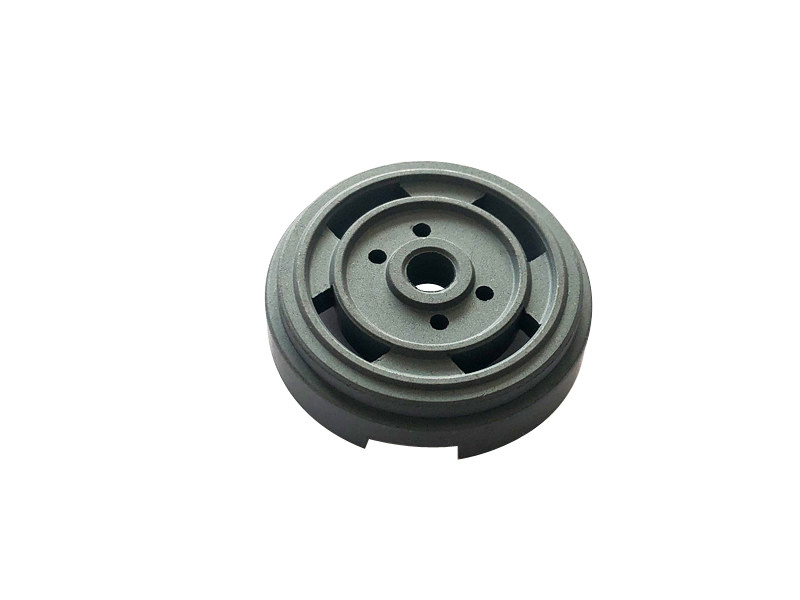

32mm Shock Base Valve With Steam Treatment

32mm Shock Base Valve With Steam Treatment

  • 32mm Shock Base Valve With Steam Treatment
  • 32mm Shock Base Valve With Steam Treatment
  • 32mm Shock Base Valve With Steam Treatment
  • 32mm Shock Base Valve With Steam Treatment
32mm Shock Base Valve With Steam Treatment
Product Details:
Place of Origin: NINGBO, CHINA
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: XY-bv06s
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Price: negotiable
Packaging Details: plastic bag +carton + wooden pallets
Delivery Time: 10 work days for samples
Payment Terms: L/C, , T/T
Supply Ability: 100,000 sets per month
Contact Now
Detailed Product Description
Product Name: Base Valve Material: Fe-C-Cu
Press Machine: 100-200T Quality Control: 100% Inspection
Surface: Steam Treatment Density: 6.6g/cm3
Hardness: HB100-130 Axial Crushing: More Than 25KN
High Light:

32mm shock base valve


shock base valve steam treatment

32mm Car Shock Absorber Use Machining Complete Base Valve With Steam Treatment



Item Powder Metallurgy bottom valve
Tolerance According to the drawings or ISO 2768 - m / H14, h14, +- IT14/2
Surface finishes Steam oxidation, 2 hours, Fe3O4: 0.004-0.005mm, degree of oxidation 2-4%
QC equipment Three-D machine, Projector, caliper, height gage
QC system 100% inspection before shipment
Processing Technical CNC machining, CNC milling, CNC turning, EDM, Stamping, Forging, Casting, Punching, Drilling, Broaching


Material (MPIF 35) FC-0205 (DIN 30910-4) Sint C10, Fe, Balance, Cu 1.5-3.9%, C 0.3-0.6%
Density 6.4-6.9 g/cm3 after steam oxidation
Apperance No crumbling, cracks, exfoliation, voids, looseness, metal pitting and other defects
Our Advantages 1. More than current 3000 moulds, save your mold cost
2. ISO/TS 16949:2009 certificate
3.Competitive price
4.Strictly quality control capacity of APQP,FEMA,MSA,PPAP,SPC


Company Information
1.We have many years of experiences in manufacturing powder metallurgy parts.

2.We have quiet office enviroment and we have independent R&D ability.
3.We have efficient production department and strict quality control department to supply good quality products all over the world.


Our product range:

Piston, guide, foot valve, gear and other sinter parts based on iron based material or stainless powder material.



Product Name: Shock Absorber base valve, foot valve

Raw Materials MPIF FC-0205 or FC-0208


1. Density from 6.5-6.7 g/cm3

2. Hardness: HRB 60-100

3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm

4. Full line products for shock absorber, including powder metallurgy piston, rod guide, Foot valve, PTFE band for piston, Du bearing for rod guide.

5. PPAP III is submitted accordingly.


Processing Flow:

Powder mixing - Forming - Sintering - Oil impregnation - Sizing - Ultrasonic cleaning - Steam oxidation - Oil impregnation - Final inspection - (+ DP4 bushing / +PTFE band) Packing


Manufacture ability

1. Auto Mechanical Press: 50T, 100T, 140T

2. Hydraulic Press: 100T, 315T, 600T, 800T

3. Six sinter furnaces, including one harden Sinter Furnace

4. Heat treatment: Carbonitriding quenching and high frequency quenching

5. Ultrasonic clearing and auto de-burring

6. In-house tooling making: EDM, wire cutting machine

7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.


Test Ability

1. Carbon sulfur determinator

2. Metallurgic microscope

3. Hydraulic universal material tester

4. Hardness testers

5. Pneumatic measuring instrument

6. Measuring projector

7. Gear testing instrument

8. Electrical profile meter

9. CMM



Automotive Part

Motorcycle Part

Metal Powder Sintered Parts

Locomotive Parts

Machinery Parts

Tool Parts


Competitive Advantage:

1. High precision

2. 100% quality with competitive price

3. Good abrasion resistance

4. High efficiency

5. Save energy


Our Advantages
1.Be of long standing factory;
2.Have enough professional engineer;
3.OEM with professinal employees;
4.Mechanical and test equipments:
5.100% factory testing and inspection personnal in accordance with international standards for the high-frequency sampling,to ensure the quality of products manufactured;


Packaging & Shipping

1. Goods are packed with export standing standard.

2. Goods will be delivered on time.

3. Goods can arrive at the destination safely.

4. derivery time: within 30 days after the payment.

32mm Shock Base Valve With Steam Treatment 0


Our Services

We have strict quality control system for sinter base valve:

1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection

2. Process Inspection: First Inspection, Random Inspection, Handover Inspection

3. Final Quality Inspection: External Dimensions Inspection, 100% visual inspection


Other pictures:

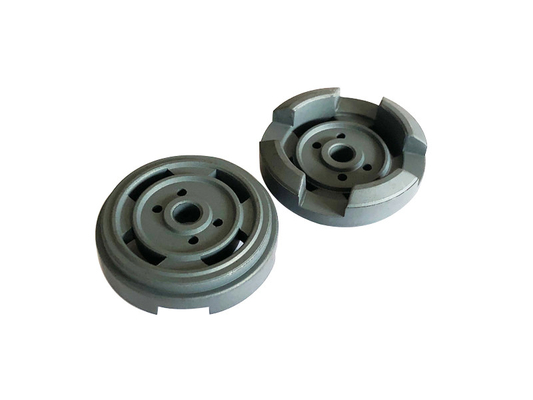

32mm Shock Base Valve With Steam Treatment 1
