| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ27mm |
| Minimum Order Quantity: | 1,005pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000 pcs per month |
| Product Name: | Banded Piston | Filler Of Bands: | Carbon Fiber |
|---|---|---|---|
| Material Of Bands: | PTFE | Color: | Black |
| Application: | Household Radiator | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 45.95mm | Working Temp.: | 260 ℃ |
| High Light: | banded piston,shock absorber parts |
||
Improved PTFE banded shock absorber piston of HRB 57-61 with tensile strength 23.5 MPA
Production capability
1. Auto Mechanical Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching
5. Ultrasonic clearing and auto deburring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.
Measuring devices
1. Carbon selfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profilometer
9. CMM
Specifications:
27mm OD piston
the pistons are used in industrial radiator
net weight is 28.56g
we can do drawing load test for banded piston with no band slippage after test.
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
Xia Yi mainly produces shock absorber pistons, industrial pistons with many different dimensions. Piston is
based on powder metallurgy, filled modified PTFE material, using a special way to combine them together,
which has dual advantage of powder metallurgy and PTFE.
We have a strong technical team to develop automatic skirting machines which can assure the
consistency of the pistons and also can improve the work efficiency. Compared with other suppliers, we
are sure we can offer you the best competitive price. At the same time, we have a whole set of testing
machine in our company to test the banding material.
(1)Advantage of powder metallurgy:
Unique chemical composition and mechanical physical properties
(2)Advantage of PTFE:
Chemical and aging resistance, temperature endurance and no-sticky performance
(3)Advantage of piston:
High carrying capacity, good wear resistance, low friction coefficient, good seal and so on
unique hole design lateral force 800N added after piston is in closed in dampers, amplitude +/-25mm
piston ring don't drop down and no abnormal abrasion after 40,000,000 times vibration
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Proper fillers can reach good seal and friction
Tooling designed by XIAYI can assure the delivery date
A whole set of testing equipment

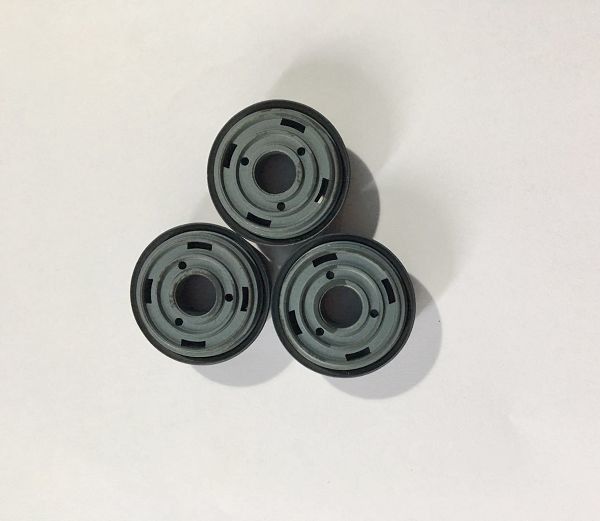

Picture show:
