PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles

PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles

PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles
PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles
PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Φ27mm
Payment & Shipping Terms:
Minimum Order Quantity: 2,000pcs
Price: negotiation
Packaging Details: According to customer’s demand
Delivery Time: One week after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000 pcs per month
Contact Now
Detailed Product Description
Product Name: Banded Piston Filler Of Bands: Carbon Fiber
Material Of Bands: PTFE Cooling Method: Water
Application: Front Car Shocks Density Of Bands: 2.06-2.19 G/cm3
Outer Diameter: 26.95mm Working Temp.: 305 ℃
Highlight:

banded piston

,

damper piston

PTFE ring banded shock absorber piston with fatigue test of 1,000,000 cycles



Excelllent PTFE material

heat pressing technology

banding machine design

high work effeciency

high production capacity



Specifications:



• front shock absorber piston
• conventional design
• with PTFE banded on OD
• we can produce according to the customer's drawing
• middle part(sinter part), we can use the material as the customer's demand
• carbon content is 0.1%, copper content is 3% or other choice





Here is the physical properties of our products
Tensile strength ≥18N/mm2
Carrying capacity ≥15N/mm3
Working temperature -80°C to 260°C
Friction coefficient(dry) ≤0.16
Friction coefficient(oil) ≤0.05





Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB60-80

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge





Description:



PTFE bands Powder metal piston 27mm shock absorber Suspension Piston for shock absorber



No foreign material or burr for PTFE disc



Product Name:Powder Metal Part - Piston for Shock Absorber



Raw Materials:Fe-C-Cu for sinter piston / PTFE + carbon for PTFE disc



D27XD8X15



Four square holes design



100% test of pistons’ appearance



No sinter powder on the pistons



Processing for sinter piston and PTFE banding



Sinter parts:



Powder blending—Forming—Sintering—Sizing—after treatment—Steam treatment—Oil impregnation



Banding:



Powder blending—PTFE cylinder compression—Sintering—PTFE disc production—repressing—heat



pressing—molding—burring—inspection—packing



Manufacturability



1. Auto Mechanical Press: 50T, 100T, 140T



2. Hydraulic Press: 100T, 315T, 600T, 800T



3. Six sinter furnaces, including one harden Sinter Furnace



4. Heat treatment: Carbonitriding quenching and high frequency quenching



5. Ultrasonic clearing and auto burring



6. In-house tooling making: EDM, wire cutting machine



7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.



Measuring devices



1. Carbon selfur determinator



2. Metallurgic microscope



3. Hydraulic universal material tester



4. Hardness testers



5. Pneumatic measuring instrument



6. Measuring projector



7. Gear testing instrument



8. Electrical profile meter



9. CMM





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



Unique material for shock piston bands



Pistons are produced by automatic banding machine can assure the consistency of the size



Complete testing equipment





Picture show:

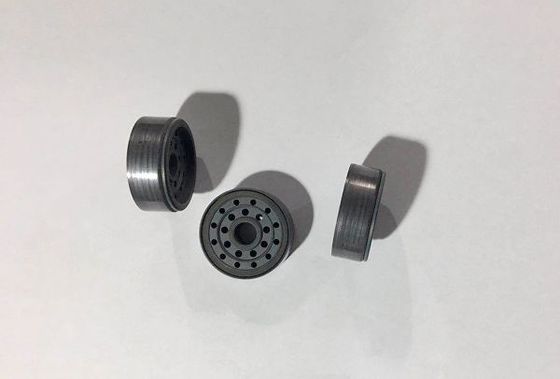

PTFE Ring Banded Shock Absorber Piston With Fatigue Test Of 1,000,000 Cycles 0
