| Place of Origin: | NINGBO |
| Brand Name: | XIAYI |
| Certification: | IATF16949 |
| Model Number: | K25-50-1211-3 |
| Minimum Order Quantity: | 150 sets |
|---|---|
| Price: | USD1.3 ~ 1.6 /set |
| Packaging Details: | 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box. |
| Delivery Time: | 15-25days after PO confirmed |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per day |
| Outer Diameter: | 12.5MM | Total Length: | 390MM |
|---|---|---|---|
| OD Of One End: | M8 X 1.25 | OD Of Another End: | M10 X 1.25 |
| Material: | S 45 C | Coaxiality: | 0.05 |
| High Light: | shock absorber rod,hydraulic piston rod |
||
390mm Hard Chromed Piston Rod with coating 25mm for Shock Absorber
Chrome Plated Rod Specification:
Diameter: Φ 6-500 mm
Length: max 16m
Chrome layer: 20 micron (min)
Hardness of the chrome layer: 800HV-1150HV
Diameter tolerance: ISO f7
Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case.
Descriptions of Chrome Plating Piston Rod for Shock Absorber
| Outer Diameter | Ø12.5(-0.01/-0.03) |
| Total Length | 390mm |
| Steel Material | CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 42CrMo |
| Chrome Hardness | 950 HV Min |
| Roughness | Rz 0.2 Micron Max |
| Straightness | 0.2/1000mm |
|
Supply condition |
1. Hard Chrome Plated |
| 2. Induction Hardened | |
| 3. Dehydrogenation & Tempered |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
| Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
| Quality Assurance | IATF16949:2016 certified/SGS/TUV |
| Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
|
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
| Japan 4-axis GAMA DMN-650 machining center | |
| Cylindrical Bore Grinders | |
| Wire EDM | |
| Magnetic grinding machine/ grinding Vibration machining | |
| Oven | |
| Ultrasonic cleaning machine | |
| Vacuum packing machine | |
|
Inspection device |
VMS2.5d measuring machine |
| Japan Mitutoyo tool microscope | |
| Japan Mitutoyo digimatic micrometer | |
| Japan Mitutoyo hardness tester | |
| Japan Mitutoyo calipers | |
| Japan Mitutoyo dial indicator | |
| Japan Mitutoyo height measuring tool | |
| Japan Mitutoyo tubular inside micrometer | |
| Japan Marble platform | |
| Go No Go gauge | |
| Electronic digital display caliper Ring gauges | |
|
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Other questions:
Q1. Dispatch seaport?
A1: Guangzhou, Ningbo, Shanghai
Q2. What other service can you offer?
A2: OEM service, welcome to send us the design drawing to develop a new product line.
Customized service, we can help you to design your packing.
Q3. How can I get the warranty?
A3: During the warranty period, any products damaged because of the quality problem can be changed for free. We provide one year warranty start from the purchase date, but it does not include damages result from any of the following situations:
Racing accidents
Improper installation
Disassembly or modifications

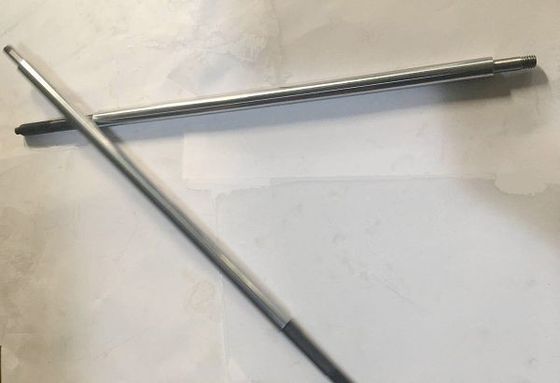

Picture:
