S 45 C Absorber Piston Rod No Sharper And Burr Shock Hardness HRC > 48
  • name
  • name
  • name

S 45 C Absorber Piston Rod No Sharper And Burr Shock Hardness HRC > 48

MOQ: 150 sets
Price: USD2.05 ~ 2.25 /set
Standard Packaging: 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box.
Delivery Period: 15-25days after PO confirmed
Payment Method: L/C, T/T, Western Union
Supply Capacity: 500 sets per day
Detail Information
Product Description
Detail Information
Place of Origin
NINGBO
Brand Name
XIAYI
Certification
IATF16949
Model Number
K30-50-2006
Outer Diameter:
20MM
Total Length:
310MM
OD Of One End:
M14 X 1.5
OD Of Another End:
M10 X 1.25
Material:
S 45 C
HRC:
> 48
Highlight:

hollow piston rod

,

hydraulic piston rod

Product Description

No Sharper & Burr Shock Absorber Piston Rod Professional With Hardness HRC > 48





Descriptions of Chrome Plating Piston Rod for Shock Absorber

Outer Diameter Ø20(-0.01/-0.04)
Total Length 310mm
Steel Material 45# DIN CK45/JIS 45C and 35# DIN CK35/JIS 35C
Chrome Hardness 950 HV Min
Roughness Rz 0.2 Micron Max
Straightness 0.2/1000mm



Supply condition

 1. Hard Chrome Plated
2. Induction Hardened
3. Dehydrogenation & Tempered



Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging



Description:

Surface treatment Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding…
Quality Assurance IATF16949:2016 certified/SGS/TUV
Drawing formats Solid works, Pro/Engineer, AutoCAD, UG, PDF







Equipment used

 Japan 5-axis TSUGAMI-B-038T CNC turing machine
Japan 4-axis GAMA DMN-650 machining center
Cylindrical Bore Grinders
Wire EDM
Magnetic grinding machine/ grinding Vibration machining
Oven
Ultrasonic cleaning machine
Vacuum packing machine











Inspection device

 VMS2.5d measuring machine
Japan Mitutoyo tool microscope
Japan Mitutoyo digimatic micrometer
Japan Mitutoyo hardness tester
Japan Mitutoyo calipers
Japan Mitutoyo dial indicator
Japan Mitutoyo height measuring tool
Japan Mitutoyo tubular inside micrometer
Japan Marble platform
Go No Go gauge
Electronic digital display caliper Ring gauges



Industry used

 Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication…



Advantages:

1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.



Other questions:

Q1. Dispatch seaport?

A1: Guangzhou, Ningbo, Shanghai



Q2. What other service can you offer?

A2: OEM service, welcome to send us the design drawing to develop a new product line.

Customized service, we can help you to design your packing.



Q3. How can I get the warranty?

A3: During the warranty period, any products damaged because of the quality problem can be changed for free. We provide one year warranty start from the purchase date, but it does not include damages result from any of the following situations:

Racing accidents

Improper installation

Disassembly or modifications

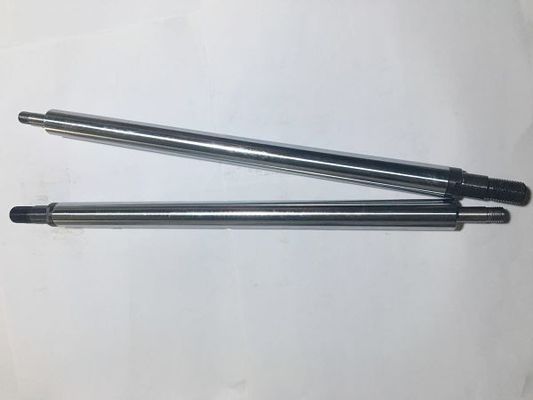

Picture:



S 45 C Absorber Piston Rod No Sharper And Burr Shock Hardness HRC > 48 0

Tags:

hydraulic piston rod,

hollow piston rod,

shock absorber rod
