Banded Shock Absorber Piston D Hardness 59 Filled Ptfe For Automotive

MOQ: 103pcs
Price: negotiation
Standard Packaging: Packed in carton and then reinforced with wooden case for outer packing
Delivery Period: 15 days after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 50,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2008
Model Number
Φ30.47mm
Product Name:
Shock Piston
Density Of Sinter Piston:
More Than 6.4g/cm3
Material Of Bands:
PTFE And Filllers
Density Of Bands:
2.06-2.19g/cm3
Application:
Front Shock Absorber
Hardness:
70-90
Highlight:

banded piston

,

damper piston

Product Description

Shore D hardness 59 filled PTFE banded shock absorber piston applied in automotive





TEST METHOD RESULT
TENSILE STRENGTH ASTM 4894 20 N/mm2
ELONGATION AT BREAK ASTM 4894 300%
DENSITY ASTM 4894 2.23±0.03gr/cm3
SHORE D HARDNESS ASTM 4894 57±3



Fluid attack:



A diameter and hardness control is carried out on the band, placed on the piston. Once the PTFE process has been carried out and before 24 hours have elapsed, it is immersed in the fluid for 72 hours at 80 ℃



Acceptance Conditions:

There can be no breakage or detachment of material. The variation of hardness ≤6%, the diameter variation ≤0.20%



Specifications:



100% tested by Go no-Go gauge



Coaxiality can be control within 0.05mm



4 round and square holes


conventional shock piston


net weight is 25.29g



we can do drawing load test for banded piston without band slippage after test.





Description:



OD 30.445-30.495 mm



Manufacturability of powder metal parts:



Auto Mechanical Press: 50T, 100T, 140T...



Hydraulic Press: 100T, 315T, 600T, 800T



Six sinter furnaces, including one harden Sinter Furnace



Heat treatment: carbonitriding quenching and high frequency quenching



Ultrasonic clearing and auto de-burring



In-house tooling making: EDM, wire cutting machine





Durability testing:

Stroke 50mm
Speed 1m/s
Side load 30kgf
Temperature 80℃+/-10℃
Duration 3 million cycles

No band peel off or breakage after test





Test Ability

 Carbon sulfur determinator
Metallurgic microscope
Hydraulic universal material tester
Hardness testers
Pneumatic measuring instrument
Measuring projector
Electrical profilometer
CMM





Strong R&D team



Responsible staffs



Clean workshop



We will bring you pistons with good quality and competitive price.





Applications:



Car or motorbike shock absorbers



Competitive Advantage:



XIAYI can produce bands rings to low down the cost and control the quality at home, at the same time we



can design and produce automatic banding machine and non-standard testing machine, can test drawing



force testing and oil immersion testing.

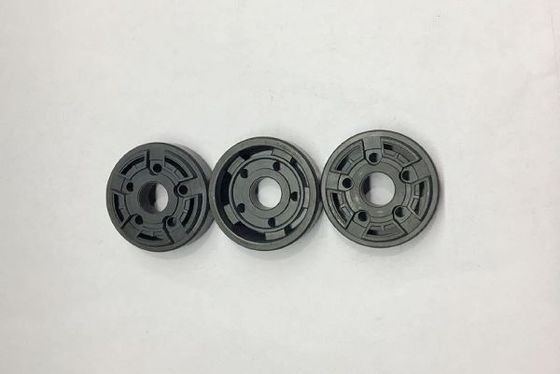

Picture show:



Banded Shock Absorber Piston D Hardness 59 Filled Ptfe For Automotive 0
