Car Shock Absorber Parts PTFE Banded Low Friction And High Temp Resist

MOQ: 2,000pcs
Price: negotiation
Standard Packaging: Packed in carton and then reinforced with wooden case for outer packing
Delivery Period: 10 days after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 300,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
Φ25mm
Product Name:
Shock Piston
Density Of Sinter Piston:
More Than 6.5g/cm3
Material Of Bands:
PTFE
Density Of Bands:
2.15g/cm3
Application:
Front Shock Absorber
Outer Diameter:
24.945mm
Tensile Strength:
18MPa
Shore Hardness:
57-61
Highlight:

banded piston

,

damper piston

Product Description

PTFE Banded Low Friction And High Temp Resist Shock Absorber Piston Used In Car Shocks





Specifications:

Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

highest working temperature

260℃



Description:



glass fiber and Molybdenum disulphide filled PTFE banded shock pistons with low friction and low creep



physical properties:



percent Molybdenum disulphide: 7%



percent glass fiber: 5%



PTFE melting point: 327℃



Boiling point: 400℃



Decomposition TEMP: 620℃



Tensile elongation: 125%



Hardness: 59D



Material of sinter piston: Fe-C-Cu powder



Percent of C: 0.5%~0.8%



Percent of Cu: 2%~4%



Others: less than 1.5%



Percent of Fe: balance



Shock absorber pistons are produced by our automatic banding machine which is designed and



produced by XIAYI company.



Process flow chart for banding pistons



1.    POWDER BLENDING



2.    PTFE CYLINDER COMPRESSION



3.    SINTERING



4.    PTFE DISC PRODUCTION



5.    PRO-COMPRESSION



6.    HEAT COMPRESSION



7.    MOLDING



8.    DEBURRING



9.    INSPECTION



10.  PACKAGE



We can produce different kinds of sinter metal parts, PTFE guide rings, banded pistons and other PTFE



products.



Welcome to visit our company to check production and inspection abilities.



We have a complete test equipment and can do property testing in our company.



Durability testing:



Stroke: 50mm



Speed: 1m/s



Side load: 30kgf



Duration 3 million cycles



Temperature: 80℃+/-10℃



No band peel off or breakage after test



Applications:



Car or motorbike shock absorbers



Competitive Advantage:



Strong R&D team



Responsible staffs



Clean workshop



We will bring you pistons with good quality and competitive price.



Picture show:

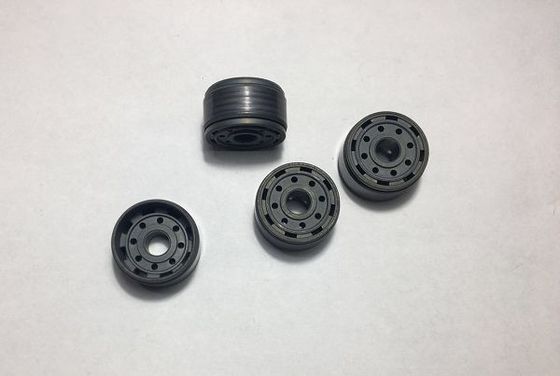

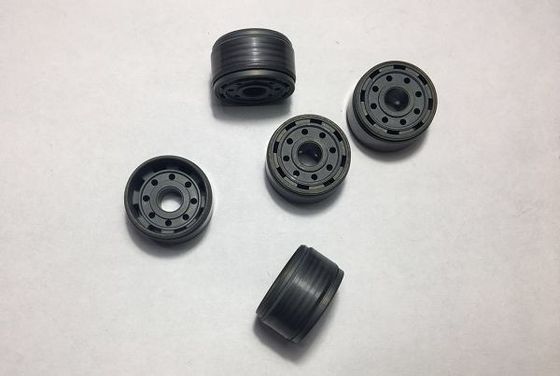

Car Shock Absorber Parts PTFE Banded Low Friction And High Temp Resist 0
