| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ30mm |
| Minimum Order Quantity: | 5,000pcs |
|---|---|
| Price: | Quote according to drawings or samples |
| Packaging Details: | Packed in carton and then reinforced with wooden case for outer packing |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000pcs per day |
| Product Name: | Shock Piston | Density Of Sinter Piston: | More Than 6.5g/cm3 |
|---|---|---|---|
| Hardness Of Bands: | HRB60 | Hardness Of Sinter Piston: | HRB80 |
| Application: | Car Shocks | Density Of Bands: | 2.06-2.19 G/cm3 |
| Outer Diameter: | 30.05mm | Net Weight: | 35.40g |
| Highlight: | No Burrs powder metallurgy parts,PTFE shock piston |
||
New Design PTFE Banded With No Burrs Shock Absorber Piston Of Shore D Hardness 60
Specifications:
• multihole design
• can do slide resistance test according to the customer's demand
• piston should slide down uniformity both in positive and contrary direction, no damping stagnation
• test velocity is 3mm/min, Static strength damage:11.27KN
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness |
57 - 62 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
attrition |
Less than 10mg |
Description:
XIAYI company mainly produce different kinds of shock absorber pistons, dimensions from 20MM～50MM,
can be used in motorcycle or car’s shock absorbers. Based on powder metallurgy material, banded filled
PTFE discs outside, has the advantages of low friction and good wear resistance.
Dimension: D30.05XD8.02X10.5
Multiple-twin oil holes design,
No scratch & crack on banded surface
Net weight is 35.40g
Density: powder metallurgy parts no less than 6.8g/cm3, filled PTFE material is 2.06-2.19 g/cm3
Hardness: powder metallurgy parts is 65HRB
filled PTFE sample block(shore hardness) is 60
Steam treatment: 2H high temp steam holding time Thickness of Fe3O4: 0.004-0.005mm
Die tooling design and making in house
Applications:
Normally used in different kinds of cars such as passenger car, truck, lorry, racing car
Competitive Advantage:
Xia Yi own two sets of automatic powder blending machine, can produce PTFE rings in house.
Xia Yi has ability to design and manufacture non-standard testing machine and automatic banding
machine.

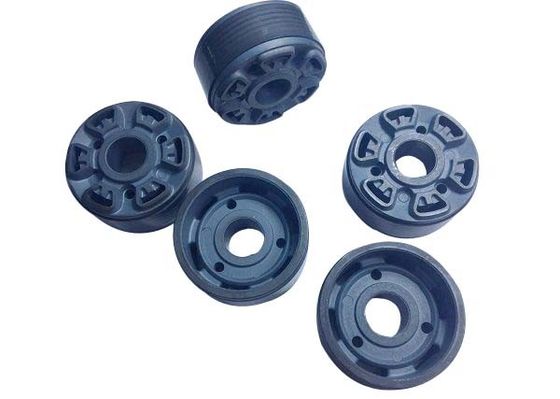

Picture show:
