45mm PTFE Banded Piston No Burrs Used In Car Shock Absorbers

MOQ: 500pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: 10 working days
Payment Method: T/T, Western Union
Supply Capacity: 1,000,000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
IATF16949:2016
Model Number
Φ45mm
Product Name:
Banded Piston
Material Of Piston:
Fe - C - Cu
Material Of Bands:
PTFE
Color:
Black
Application:
Rear Shock Absorbers
Density Of Bands:
2.15 G/cm3
Outer Diameter:
44.88-44.94mm
Working Temp.:
260 ℃
Highlight:

No Burrs PTFE Banded Piston

,

45mm PTFE Banded Piston

,

45mm rear shock absorbers Piston

Product Description

46 mm PTFE Banded Piston With HRB65 - 90 No Burrs Used In Car Shock Absorbers





Groovefill requirement for banded piston


The minimum groovefill requirement is valid for the average measurement / groove on both sides



of the piston (0° and 180° on the circumference of the piston)



BORE SIZE GROOVE FILL
27 MM MIN 0,24 MM
30 MM MIN 0,24 MM
32 MM MIN 0,30 MM
35 MM MIN 0,34 MM



Specifications:

Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness (bands)

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

hardness (sinter piston)

HRB65-85

Different fillers

carbon fiber

glass fiber

graphite

Molybdenum disulfide

carbon



Description:



New design new technology ptfe + Carbon Fiber Shock Absorber Piston with durability test



1. Size D45* D12 * 12.5



2. PTFE+CARBON FIBER



3. Band PTFE disc



4. 2021 new design



5. Density of sinter piston: 6.8g/cm3



6. Material: C=0.3%, Cu=3%



7. Hardness for sinter piston is HRB65-85



Materials of PTFE disc:



1. PTFE+BRONZE



2. PTFE+CARBON FIBER



3. PTFE+GLASS FIBER



4. OTHER FILLERS or other material according to customer’s demand



Applications:



In car or motorbike front or rear shock absorbers



Competitive Advantage:



1. Consistency in size.



2. Infrared ray detect the out diameter in automatic banding machines



3. Produce PTFE disc by Xia Yi, can control the quality itself.



Picture show:

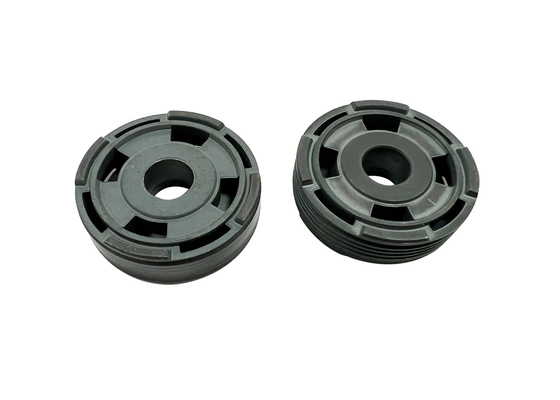

45mm PTFE Banded Piston No Burrs Used In Car Shock Absorbers 0
