| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ50mm |
| Minimum Order Quantity: | 5,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Pack one by one in plastic box |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000,000pcs per month |
| Product Name: | Shock Pistons | Material Of Sinter Parts: | Fe - C - Cu |
|---|---|---|---|
| Material Of Bands: | Filled PTFE | Color: | Black |
| Application: | Heavy Duty | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 50mm | Working Temp.: | 260 ℃ |
| High Light: | PTFE Banded damper pistons,Shock Absorber damper pistons,Wear Resistance damper pistons |
||
PTFE Banded Shock Absorber Pistons With Good Wear Resistance And Friction
Xia Yi is specializing in producing damper pistons. Our products are not only selling well in many cities in China, but also exported to many
overseas countries and regions, such as Africa, South America, Southeast Asia and the Middle East. Our enterprise is trying our best to provide
higher quality products at lower price, and bring you satisfactory customer service. We always optimize our products to meet different
requirements of customers. We also provide OEM services. We do business in good faith and enjoy a good reputation for our good after-sales
service.
Specifications:
|
Physical performance for shock pistons |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.15 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
hardness (sinter piston) |
HRB65-85 |
|
|
Different fillers |
carbon fiber |
|
|
glass fiber |
||
|
graphite |
||
|
Molybdenum disulfide |
||
|
carbon |
||
Description:
No scuffing, Custom Shock absorber Pistons can stand fatigue test and blow-off test
SPEC: D50XD12X14
• Big shock absorber piston
• Conventional design
• With PTFE banded on OD
• We can produce according to the customer's drawing
• Middle part (sinter part), we can use the material as the customer's demand
• Carbon content is 0.1%, copper content is 3% or other choice
Advantages of products:
1. Wear and corrosion resistance
2. Efficiency steaming treatment
3. Reduces friction and ensure smooth rod reaction
4. PTFE banded piston
5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston
6. Increased seal durability
We own the following testing equipment to assure the quality and properties of the mixed material and banding effectiveness.
1. Tensile strength testing machine
2. Abrasion & friction coefficient testing machine
3. Shore durometer
4. Rockwell hardness tester
5. Density balance
6. Fatigue testing machine
7. Blow-off & friction testing machine
Applications:
In car or motorbike front or rear shock absorbers
Competitive Advantage:
1. Consistency in size.
2. Infrared ray detect the out diameter in automatic banding machines
3. Produce PTFE disc by Xia Yi, can control the quality itself.
4. Own a whole set of testing machine.
5. Design and produce automatic banding maching by ourselves, improve production efficiency and assure quality in perfect condition.

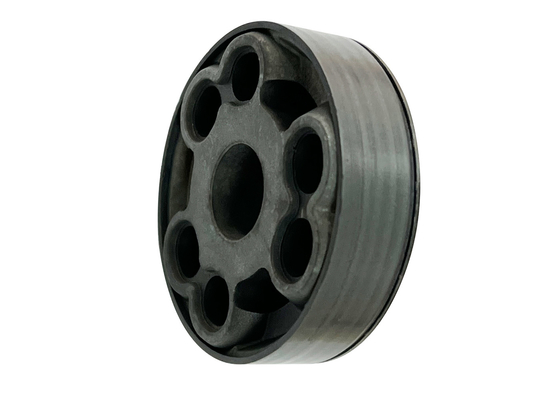

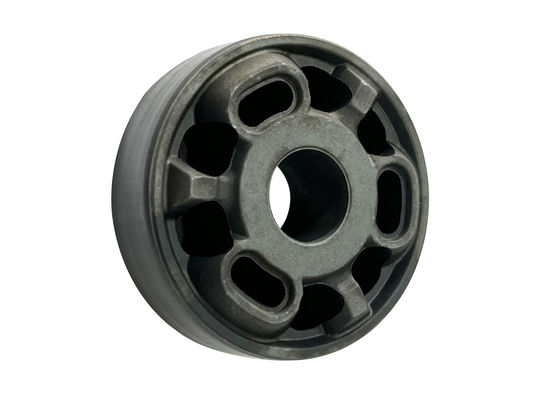

Picture show:
 |
