Place of Origin: | China |
Brand Name: | XIAYI |
Certification: | IATF16949:2016 |
Model Number: | Φ32mm |
Minimum Order Quantity: | 2,000pcs |
---|---|
Price: | negotiation |
Packaging Details: | Standard exporting package |
Delivery Time: | One month after technical details are confirmed |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50,000pcs per month |
Product Name: | Foot Valve Body | Material: | BSS-102000-001 |
---|---|---|---|
Press Machine: | 100T | Key Size: | 100% Inspected |
Application: | Car Shocks | Plating: | Customized |
Sample Time: | One Month | Surface: | Rust-preventive |
Highlight: | 32mm Foot Valve Body,Front Shock Absorber Foot Valve Body,55 HRB Shock Absorber Parts |

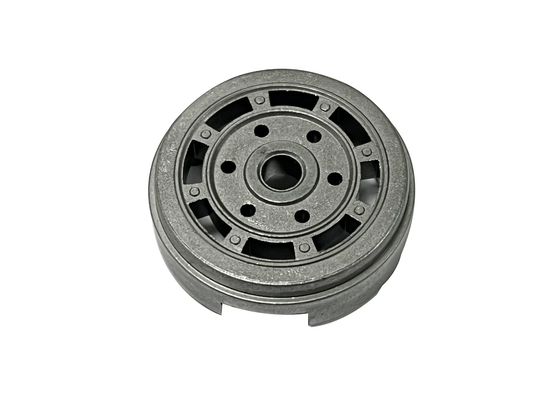

32mm With 55HRB Foot Valve Body For Front Shock Absorber In Peugeot 405
Manufacturability
1. Auto Mechanical Press:50T, 100T, 140T
2. Hydraulic Press:100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. In-house tooling making:EDM, wire cutting machine
Specifications:
Density |
6.2-6.8 g/cm3 |
Hardness |
HRB 45-65 |
Steam treatment |
2H high temp steam holding time |
Thickness of Fe3O4 |
0.004-0.005mm |
Description:
HRB30-65 Iron-Copper and Copper Steel Sintered Parts for car shock absorbers
Our company produces different kinds of sintered parts. These sintered part include pistons, foot valve,
rod guider, valve base and so on.
Dimension: D32XD5X11.2
Material: similar as BSS-102000-001
Density: Not less than 6.5g/cm3
Net weight is 29g
Die tooling design and making in house
Ultrasonic clearing and auto de-burring
No lack of material of valve line
No foreign material and dust on surface
Material Available and Chemical Composition:
P/M Copper and Copper Alloys
P/M Iron and Carbon Steel
Iron and Carbon Steel
Iron-Copper and Copper Steel
Iron-Nickel and Nickel Steel
Low Alloy Steel
Commix Low Alloy Steel
Sinter Hardened Steel
Diffusion Alloyed Steel
Copper Infiltrated Iron and steel
Applications:
Front shocks from Peugeot 405
Competitive Advantage:
1. High precision |
2. 100% quality with competitive price |
3. Good abrasion resistance |
4. High efficiency |
5. Save energy |
Picture show:
