| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | Φ31.05mm |
| Minimum Order Quantity: | 1,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000 pcs per month |
| Product Name: | Sinter Piston | Material: | Fe-C-Cu |
|---|---|---|---|
| Color: | Black | Application: | Ship Shocks |
| Density Of Bands: | 2.15 G/cm3 | Outer Diameter: | 36mm |
| High Light: | Adjustable Boat Seat Shock Absorber Piston,Customized Sintered Shock Absorber Piston,Ship Shock Sinter Parts |
||
Customized Sinter Piston Applied Shock Absorbing Adjustable Boat Seat
Specifications:
Physical performance for shock piston | tensile strength | More than 18MPa |
elongation @ break | More than 160% | |
shore hardness (bands) | 57 - 61 | |
density | 2.06 – 2.19 g/cm3 | |
wear | Less than 50mg | |
friction coefficient | Less than 0.2 | |
hardness (sinter piston) | HRB60-80 | |
Technical requirements for sinter piston | Raw material F50 - U3 - 66 or FC - 0208 | |
Steam treatment | ||
OD tested by digital air gauge | ||
Description:
XIAYI company is specialized in design and producing PTFE banded shock absorber pistons,at the same time,we design and manufacture
automatic skirting machines.
Till now we have produced so many different types of shock absorber pistons with the diameter from ø20mm~ø50mm.We make PTFE discs and
toolings in our own factory,can control the quality effectively and also can save much time.
D36 PISTON:
RAW MATERIAL OF SINTER PARTS:IRON BASED,IRON & COPPER BASED,COPPER
BASED,STAINLESS STEEL BASED
RAW MATERIAL OF PTFE DISC:
PTFE+BRONZE
PTFE+CARBON
PTFE+GLASS FIBER
PTFE+OTHER fillers according to cutomers’ demand
The detail information of the pistons:
1.Used in front shock absorbers
2.When temperature reach 100℃,expansion ratio ≤+/-1%
3.Using the testing ring,with the shock absorber oil,max frictional force is 15N
4.Piston can get through freely of the certain size of cylinder with 2N force
5.PTFE tensile strength ≥18MPa,elongation @ break ≥200%
6.Tight integration between piston and PTFE disc.PTFE won't fall off when working in the cylinder.
Applications:
Shock absorbers from Ship and boat
Competitive Advantage:
1. Consistency in size
2. Infrared ray detect the diameter
3. Strict control plan
4.100% testing for outer diameter

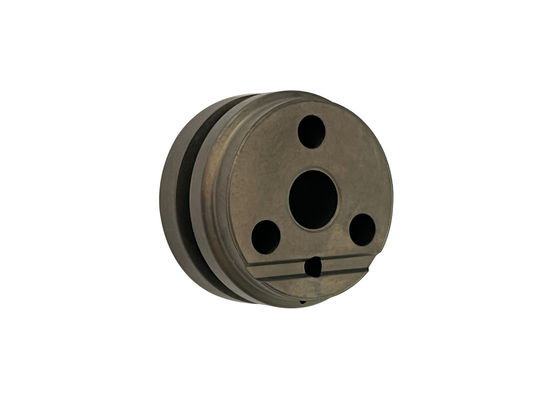

Picture show:
 |
