Precision Ground Shock Absorber Piston Rod with HRC > 48 and Chrome Plated for Smooth Suspension

Precision Ground Shock Absorber Piston Rod for Smooth Suspension Movement

Manufactured to exacting surface finish standards, this precision-ground piston rod ensures exceptionally smooth shock absorber operation with minimal seal friction and consistent damping performance. Available in multiple material grades — including stainless steel, alloy steel, and titanium — and featuring a hollow rod design option for weight-sensitive applications, it delivers the dimensional accuracy and surface integrity that premium suspension systems demand. Every rod undergoes IATF16949:2016-governed quality inspection with documented mechanical properties and chemical composition traceability.

Descriptions of Chrome Plating Piston Rod for Shock Absorber

Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging

Chemical Composition

Mechanical Properties

Description:

Advantage of Product
1)Professional & skilled, reliable.
2)One-stop total solution
3)ready stock goods with fast delivery
4)Customizable: Non-standard sizes are also available
5)Small quantity is acceptable
6)Cash back: Refund or replacement for any product faulty

Application:

Precision instruments, Surgical equipments, Automotive parts, Optical products, LED flash lights, Electronics parts, precise tools etc…

Sourcing precision-ground piston rods for demanding suspension and motion control applications requires evaluating multiple technical and commercial factors. Below are the critical areas that directly influence component performance, supply reliability, and total cost of ownership:

The interaction between the piston rod surface and the shock absorber seal is one of the most critical interfaces in the entire damper assembly. Inadequate surface finish — whether from inconsistent grinding, poor chrome deposition, or insufficient polishing — accelerates seal wear, increases internal friction, and compromises damping consistency. Our rods achieve Ra 0.2 micron maximum roughness with 20-30 micron chrome thickness at 950 HV minimum hardness, delivering a precision-lapped surface that optimizes seal life and ensures velvety-smooth suspension articulation across the full stroke range.

A one-material-fits-all approach rarely works for diverse shock absorber applications. Passenger vehicles demand cost-efficient CK45 steel, while performance and heavy-duty applications may require 42CrMo4 for high tensile strength (980 N/mm2) or stainless steel for corrosion-critical environments. We manufacture from CK45, ST52, 20MnV6, 42CrMo4, 40Cr, bearing steel, and stainless steel — with published chemical composition and mechanical properties for each grade — enabling data-driven material selection based on your specific load, environment, and lifecycle requirements.

Unsprung mass reduction is a persistent engineering priority in vehicle dynamics — every gram saved at the wheel assembly improves ride quality and handling response. Our hollow piston rod capability, produced through precision drilling and turning operations, achieves meaningful weight savings without compromising structural integrity. Combined with our multi-material expertise and documented yield strength (350 MPa minimum) and elongation (≥15%) values, we support lightweight suspension designs from concept validation through series production.

Road salt, coastal humidity, and industrial pollutants can rapidly degrade chrome-plated surfaces that lack proper thickness and deposition quality. Our chrome-plated rods achieve 48 to 120 hours of salt spray resistance (per ASTM B117), supported by 20-30 micron chrome layer thickness and multiple surface treatment options including nickel plating, blackening, and electrophoresis for enhanced protection in extreme environments.

Many high-volume manufacturers enforce minimum order quantities that lock out smaller buyers and R&D programs. We accept small quantities for prototyping and non-standard custom sizes, with in-house CNC machining (Japan TSUGAMI 5-axis, GAMA 4-axis), wire EDM, and cylindrical grinding capabilities enabling rapid turnaround on custom configurations. Engineering drawings in SolidWorks, Pro/Engineer, AutoCAD, UG, and PDF are welcomed for quote.

Q1. What is the difference between a solid and hollow piston rod?

A1: Hollow piston rods reduce unsprung mass in the suspension system, improving vehicle ride quality and handling response by lowering the weight of components moving with the wheel. They are manufactured through precision deep-hole drilling and are fully validated for structural integrity under rated load conditions. Solid rods are preferred for maximum strength in heavy-duty applications. We offer both types based on your engineering requirements.

Q2. Which steel grade should I choose for my application?

A2: The optimal choice depends on your operating conditions. CK45 in normalized condition provides good all-around performance at competitive cost. For high-strength requirements, 42CrMo4 Q+T delivers 980 N/mm2 tensile strength. ST52 offers excellent weldability. For corrosive environments, we recommend stainless steel grades. Our engineering team can assist with material selection based on your load, duty cycle, and environment specifications.

Q3. What surface finish options are available?

A3: We offer Chrome plating (standard, 20-30 micron, 950 HV min hardness), Nickel plating, Zinc plating, Blackening, Electrophoresis, Anodization, and Oxidation. Polished finishes are also available for all treatments. The standard chrome-plated finish achieves Ra 0.2 micron max roughness and 48-120 hours salt spray resistance.

Q4. What is the minimum order quantity (MOQ)?

A4: Our standard MOQ is 150 sets. However, we welcome small-quantity orders for prototype development, sample evaluation, and first-article inspection. Non-standard custom sizes are also available for trial orders.

Q5. Do you provide ROHS compliance documentation?

A5: Yes, ROHS-compliant materials and processing are available across our piston rod product line. Compliance certificates are provided with your order documentation package upon request.

Q6. What is your lead time for standard and custom orders?

A6: Standard product delivery is 15-25 days after purchase order confirmation. Custom configurations and new drawing-based orders may require additional 7-10 working days for first-article production and validation before series manufacturing begins.

Q7. How do you ensure consistent quality across production batches?

A7: Our IATF16949:2016 quality system mandates 100% dimensional inspection for every rod using Japan Mitutoyo precision instruments. Chemical composition and mechanical property test certificates are maintained per heat number. Statistical process control data is available for long-term supply agreements, providing complete quality transparency.

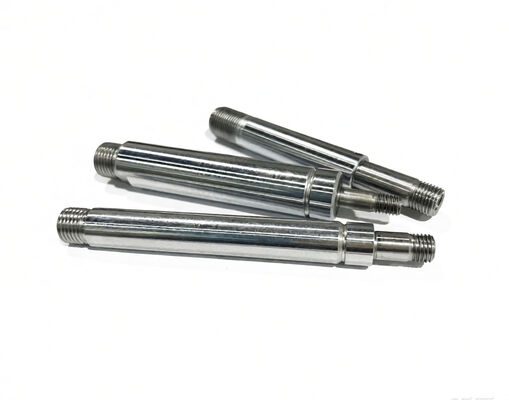

Picture:
