Impact Resistant DU Bushing for Automotive Suspension Components

MOQ:	500pcs
Price:	negotiation
Standard Packaging:	Products packed by plastic bag, each bag contain 500pcs or 5kg Max
Delivery Period:	Within 20-25days after order confirmation
Payment Method:	T/T,L/C
Supply Capacity:	50,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

Ningbo, China

Brand Name

XIAYI

Certification

IATF16949:2016

Model Number

Product Name:

BUSHING

Inner Layer:

Application:

Hydraulic Gear Pump

Type:

Sleeve

Coefficient Of Linear Expansion:

12*10 -6/K

Load Capacity P (Dry):

250N/mm2 (Static Load)

PV Value Limit:

50N/mm2 (Oil Lubrication)

Material Of Bands:

Bronze Steel

Product Description

Impact Resistant DU Bushing for Automotive Suspension Components Performance Specifications

Temperature	-195 to +280 [ °C ]
Max. dry running Pv (Short-term operation)	3.6N/mm2.m/s
Max. dry running Pv (Continuous operation)	1.8N/mm2.m/s
Max. speed (dry running)	2m/s
Max. speed (Hydrodynamic operation)	>2m/s

Product Description

1, Good load capacity and anti-wear.

2. Work long time without oil.

3. Low friction index.

Flange Bearings Dimensional Range

Min. ID	Min. OD	Max. ID	Max. OD	Min. FD	Max. FD	Max. Length
6mm	8mm	40mm	44mm	12mm	53mm	40mm
40mm	46mm	95mm	105mm	60mm	144mm	127mm
25mm	28mm	300mm	305mm	35mm	340mm	90mm
25mm	28mm	300mm	305mm	35mm	340mm	90mm
10mm	14mm	120mm	140mm	22mm	170mm	100mm
6mm	12mm	50mm	60mm	14mm	70mm	70mm
6mm	12mm	300mm	320mm	35mm	340mm	130mm

I.D. = inner diameter

O.D. = Outer diameter

F.D. = Flange diameter

Engineering Advantages

1 PTFE / Pb mixture 0.01-0.03mm, provides an excellent initial transfer film

2 sintered bronze powder 0.20-0.35mm, provides Max thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE- lead mixture.

3 Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.

4 copper / Tin plating 0.002mm, provides good corrosion resistance.

Technical Data

Performance index		data
Max load capacity	Static load	250N/mm²
Max load capacity	Dynamic load	140N/mm²
Max sliding speed	Dry friction	2.5m/s
Max sliding speed	Oil lubrication	5.0m/s
Max PV value limit	Dry friction	3.6N/mm²m/s
Max PV value limit	Oil lubrication	50N/mm²m/s
Friction coefficient	Dry friction	0.08-0.20
Friction coefficient	Oil lubrication	0.02-0.07
Working temperature		-195℃~280℃
Thermal conductivity		42W/mk
Coefficient of thermal expansion		11*10^-6/k

Critical Design Considerations

Automotive suspension engineers often encounter difficulties with bushing degradation under high-frequency impact loading, thermal breakdown at elevated operating temperatures, and premature wear in dry-start conditions. The Impact Resistant DU Bushing is purpose-built to overcome these challenges:

Multi-layer construction with PTFE/lead initial transfer film (0.01-0.03mm) ensures immediate lubrication upon first movement, preventing dry-start scoring

Sintered bronze powder interlayer (0.20-0.35mm) acts as both a lubricant reservoir and thermal conductor, efficiently dissipating friction heat away from the contact surface

Low carbon steel backing provides exceptional structural integrity with static load capacity up to 250N/mm² for heavy-duty impact resistance

Wide dimensional range from 6mm ID to 300mm ID with flange diameters up to 340mm covers most suspension component applications

Copper/tin plating (0.002mm) delivers reliable corrosion protection for long service life in harsh under-vehicle environments

Competitive Advantage

1. A complete set of testing equipment

2. Rich experience in bushing production

3. Good outsource factory

4. Have an audit for material supplier every year

Applications

Stainless steel bushing is widely used in strong acid and alkali situation, such as chemical industry, pumps and valves.

Lead free bearing is widely used in food machine, pharmaceutical machine

Packaging & Delivery

Packaging Detail: Products packed by plastic bag, each bag contain 500pcs or 5kg Max, packed Cartons max 20kgs each. Delivered by Wooden package or Iron cage / Pallet as requested, Standard Size 800x800x1200; Max G.W. 800kgs

Delivery Detail: Within 10-15days after order confirmation

Frequently Asked Questions

Q: What makes the DU bushing impact-resistant for suspension applications?

The three-layer composite design combines a low carbon steel backing for structural strength, a sintered bronze powder interlayer for thermal management, and a PTFE/lead transfer film for friction reduction.

Q: What size range is available for flange DU bushings?

Our flange DU bushings are available from 6mm minimum ID up to 300mm maximum ID, with outer diameters ranging from 8mm to 320mm, and flange diameters from 12mm to 340mm. Maximum length capacity is 130mm.

Q: Can these bushings be used in food-grade or pharmaceutical applications?

Yes, we offer lead-free bearing variants specifically designed for food machinery and pharmaceutical equipment.

Q: What is the difference between dry running and hydrodynamic operation?

In dry running conditions, maximum speed is 2m/s with a continuous PV limit of 1.8N/mm²·m/s. Under hydrodynamic (oil-lubricated) operation, speeds exceed 2m/s with significantly higher PV limits.

Q: How is product quality verified before shipment?

We maintain a complete set of testing equipment for dimensional verification, material certification, and performance validation. Annual supplier audits and IATF 16949:2016 certified processes ensure consistent quality.

Product Images

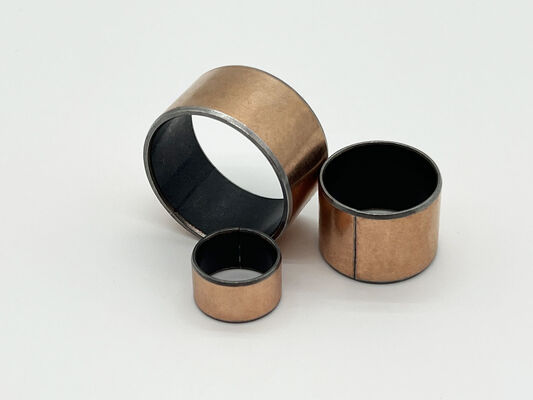

Impact Resistant DU Bushing for Automotive Suspension Components
