Wide groove Fe – C – Cu sinter damper piston with PTFE bands for car shock

MOQ: 2,000pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: One week after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 50,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ46mm
Product Name:
Banded Piston
Filler Of Bands:
Graphite Carbon
Material Of Bands:
PTFE
Color:
Black
Application:
Car Shocks
Density Of Bands:
2.06-2.19 G/cm3
Outer Diameter:
46.05mm
Friction Coef.:
0.20
Highlight:

shock absorber parts

,

damper piston

Product Description





Wide groove Fe – C – Cu sinter piston with PTFE bands applied in car shock





Specifications:



Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB60-80

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge





Description:



PTFE bands Powder metal piston 27mm shock absorber Suspension Piston for shock absorber



No foreign material or burr for PTFE disc



Product Name:Powder Metal Part - Piston for Shock Absorber



Raw Materials:Fe-C-Cu for sinter piston / PTFE + carbon for PTFE disc



100% test of pistons’ appearance



No sinter powder on the pistons



Processing for sinter piston and PTFE banding



Sinter parts:



Powder blending—Forming—Sintering—Sizing—after treatment—Steam treatment—Oil impregnation



Quality Control: 100% inspection on critical dimensions



Production Output: 100,000 pieces/month



Experience: Many years of professional OEM service



Material: Aluminum, brass, stainless steel, copper, alloys,etc.



Supply chain process: PPAP



Ability: To develop hundreds of news parts annually



Manufacturability



1. Auto Mechanical Press: 50T, 100T, 140T



2. Hydraulic Press: 100T, 315T, 600T, 800T



3. Six sinter furnaces, including one harden Sinter Furnace



4. Heat treatment: Carbonitriding quenching and high frequency quenching



5. Ultrasonic clearing and auto burring



6. In-house tooling making: EDM, wire cutting machine



7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



1) Our factory has been accredited the ISO9001:2008 certificate.



2) Using different raw materials.



3) Have our own plant, can tell you the progress of production accurately.



4) We can make the products according to customer's drawings.





Picture show:

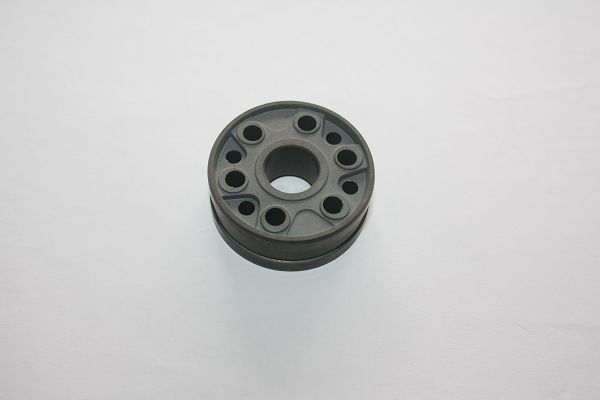

Wide groove Fe – C – Cu sinter damper piston with PTFE bands for car shock 0



Wide groove Fe – C – Cu sinter damper piston with PTFE bands for car shock 1
