Place of Origin: | China |
Brand Name: | XIAYI |
Certification: | ISO9001:2008 |
Model Number: | XYJD-B0826-4 |
Minimum Order Quantity: | 1,023pcs |
---|---|
Price: | negotiation |
Packaging Details: | Packed in carton firstly and then reinforced with wooden case for outer packing |
Delivery Time: | Sample Generally 10 Days And Mass Cargo According To Quantity |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 50,000pcs per month |
Product Name: | Bushing | Tin Plated: | Bright White Corlor |
---|---|---|---|
Surface Roughness: | Ra0.8 | Material Of Bands: | Steel Backing +copper Alloy |
Item Model: | U,DX,FB090,FB092,JDB,SF-1 | Inner Layer: | Bronze CuPb10Sn10,CuSn6.5P |
Lubricating: | Graphite, Carbon, Oilless, POM, PTFE | Standard: | DIN1494,ISO3547,ISO2795 |
Highlight: | Ra0.8 oil free bushings,DIN1494 oil free bushings,oil free bushings DIN1494 |
High quality precision Oilless Bushing all Oiles Bronze Bearing,Oil Free Bushings
Characteristics of copper bushing | High load capacity Good anti-wearing |
Low coefficients of friction | |
Good heat conductivity | |
High corrosion resistance | |
Long life and maintenance-free | |
No contaminant by oil or grease |
Specifications:
SF-1(du) oilless bearing bushing (PTFE Composite)
SF-2 (dx) slide bearing bushing (POM Composite)
FB090 (FB090G) bronze bushing
FB092 bronze bushing
JDB, JFB solid graphite lubricating bushing
JF bi-metal bushing
FU sintered bronze or iron bushing
FZ POM/Al/Cu ball cage retainer
FR metal mesh + PTFE Soft strips
JGB Graphite bearings
Description:
DU bushing is a standard item of our company
DU bearing is also called PTFE bushing, SF-1 oilless bearing, PTFE lined bearing, plain dry bushes, DU
bush.
Product Feature
Structure: Bronze Backing + Bronze Sinter + PTFE/PB
1. PTFE/PB mixture 0.01 - 0.03mm, provides an excellent initial transfer film, which effectively coats the
mating surface of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder 0.20 - 0.35mm, provides max. Thermal conductivity away from the bearing
surface, also serves as a reservoir for the PTFE-lead mixture.
3. Bronze backing, gives exceptionally high load carrying capacity, excellent heat dissipation. Have very
good corrosion resistance.
Technical data |
||||
Max load capacity |
Static |
250N/mm2 |
Temp. limit |
-195℃~+280℃ |
dynamic |
140N/mm2 |
Friction coefficient |
0.03~0.20 |
|
Speed limit |
dry |
2m/s |
Thermal conductivity |
42W(m*K)-1 |
oil |
<2m/s |
|||
PV limit(dry) |
Short time |
3.6N/mm2*m/s |
Linear expansion |
11*10-6*K-1 |
|
|
Availability:
Standard cylindrical bush, flanged bushing, thrust washers and strips are available.
Special designs can be made according to your requirement
Lead free bushing is also available
Applications:
DU bearing is widely Lifting equipment, Hydraulics and valves, pneumatic equipment, medical equipment,
textile machinery, agricultural equipment, construction equipment, material handing equipment, packaging
equipment, automotive field, scientific equipment, drying ovens, office equipment, etc.
Widely used in agricultural machine,construction machine, crane, underpan parts,
conveyor,elevator,winch,plane machine, truck, etc.
Competitive Advantage:
1. A complete set of testing equipment |
2. Rich experience in bushing production |
3. Good outsource factory |
4. Have an audit for material supplier every year |

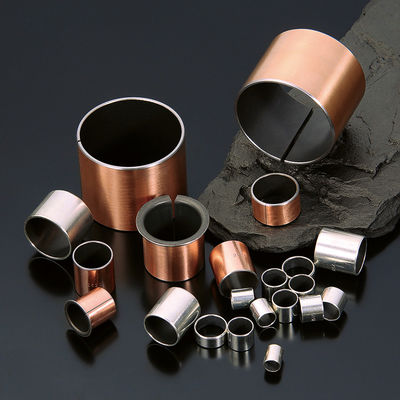

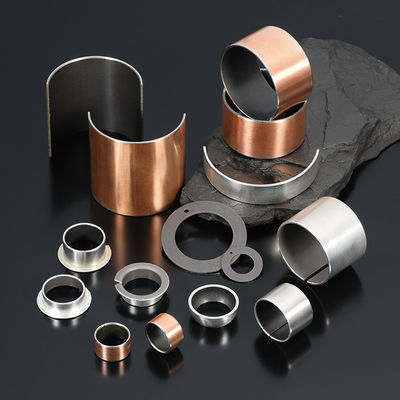

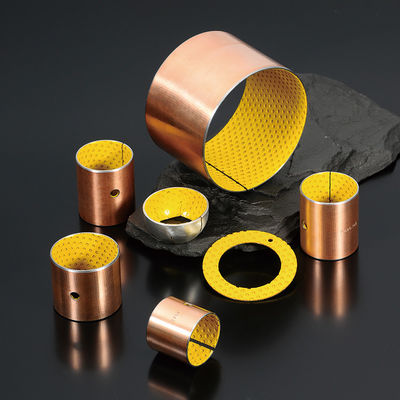

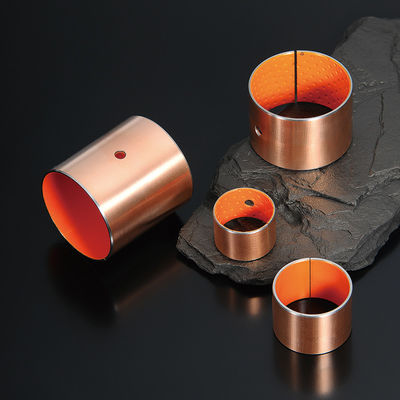

Picture Show
