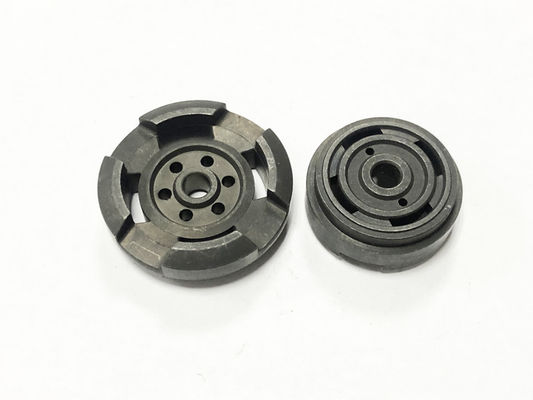

HRB60-100 Shock Absorber Car Parts Base Valve
  • name
  • name
  • name
  • name

HRB60-100 Shock Absorber Car Parts Base Valve

MOQ: Negotiation
Price: Negotiation
Standard Packaging: Standard Export Wooden Case
Delivery Period: 7-15 working days
Payment Method: L/C, T/T
Supply Capacity: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin
NINGBO,CHINA
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
foot valve
Part Name:
Base Valve
COLOR:
CUSTOMIZED
Hardness:
HRB70-90
Density:
6.5-6.8
Material:
FC-0208
Application:
Shock Absorber
Highlight:

HRB60 Shock Absorber Car Parts

,

HRB100 Shock Absorber Car Parts

Product Description

Part Name: Low Speed High Torque Rated Pressure 20 MPa Hydraulic Marine Motors



Especially used in oil and coal mining, plastic machinery



Applied in Hydraulic transmission of mining, construction, engineering machinery, lifting and transportation equipment, metallurgy, petroleum and coal mines, Marine machinery, plastic machinery, geological drilling and other machinery.



Low-speed high-torque hydraulic motor is composed of housing, crank, connecting rod, piston assembly, eccentric shaft and oil distribution shaft. Five cylinder bodies are arranged evenly along the housing.



Due to match the orientation and transition flow shaft seal between the eccentric direction of crankshaft, and rotate at the same time, oil feed window always on one side of the eccentric line of two or three oil cylinder, oil absorption window on the eccentric line on the other side of the rest of the oil cylinder, the total output torque is torque superposition generated by the piston to the crankshaft center stack, the torque rotary motion to continue.



Basic Features:

1. The hydraulic motor adopts eccentric shaft and low frequency five-plunger structure, so it has low noise.

2. Adopt compensable structure, with good reliability and almost no leakage. Adopt new sealing ring between plunger and cylinder, with good volume efficiency.

3. Ball bearing supported between crankshaft and two sides, so it has high mechanical efficiency.

4. Rotation direction can be reversed, and the output shaft is allowed to bear certain radial and axial forces.

5. High power and quality ratio, with small volume and weight.

6. High starting torque, can operate stability at a very low speed.



Technical Parameters:



Model



Displacement

mL/r

Pressure

MPa

Torque



Speed

r/min

Weight

Kg
Rated pressure Max pressure

Rated torque

N.m

Unit theoretical torque

N.m/MPa
NIM2-200 207 20 25 611 31 8-800 27



Detail dimension drawings and performance curves:

HRB60-100 Shock Absorber Car Parts Base Valve 0

HRB60-100 Shock Absorber Car Parts Base Valve 1

HRB60-100 Shock Absorber Car Parts Base Valve 2

HRB60-100 Shock Absorber Car Parts Base Valve 3

HRB60-100 Shock Absorber Car Parts Base Valve 4

Properties curve:

HRB60-100 Shock Absorber Car Parts Base Valve 5

Other drawings:

HRB60-100 Shock Absorber Car Parts Base Valve 6



HRB60-100 Shock Absorber Car Parts Base Valve 7
Tags:

shock valve,

base valve shocks,

base valve shock
