Product Details:
Payment & Shipping Terms:
|
| MACHINE TYPE: | PRODUCTION | MAIN COMPONENT: | CYLINDER, MOTOR |
|---|---|---|---|
| DIMENSION: | 800mm×1050mm×1250mm | Rated Voltage: | 380V |
| Total Power: | 300W | Air Pump Pressure: | 0.5～0.8MPa |
| High Light: | automatic banding machine,automatic grooving machine |
||
fully automatic machine to produce ptfe banded piston with one year quality guarantee
Technical parameters
| Standard specification | XYJD-SMB011 |
| Dimensions | 1800*700*1700 |
| Nominal capacity | 400pcs-600pcs per hour |
| Voltage | 380V |
| Powder supply | 4-wire 3-phase |
| Tooling set-up | 15 minutes |
| Air pressure | 5 litre/cycle |
| Piston OD | from 25mm to 46mm |
| PLC | Siemens or others |
| Machine lead time | 3 months |
| Machine spare parts | 1 month |
| Machine spare unit | available |
| Piston | on table |
| Machinery drive | SMC air cylinder |
TEAM: We have a technical team to develop automatic and semi-automatic machines.
DIMENSION: We can get the pistons with PTFE banding on OD and can highly improve work efficiency
and lower the cost. Infrared ray can control the piston's outer dimension and we can assure the
dimension's consistency.
MOULD: We can make the mould by ourselves.
OPERATORS: Only need to put the powder metallurgy products on the table and take out of the finished
pistons from the table.
One person can operate several machines.
To assure the appearance of the products, we will improve to use long conveyer directly to work table
If you are interested in such machines, we can offer the detail information if you need. Our technical
persons can help to set up and debug the machines.
Our technic persons can help to set up and debug the machines.
Output:500-600 pcs pistons/hour
Electricity:380V
Tooling set up:15 minutes
Piston diameter:25mm-46mm
Piston height:12mm-20mm
Machine lead time:2 months
Tooling lead time:3 weeks
Machinery spares:2 weeks
Machinery spare set:available
Pistons in /out:on table
Infrared ray can control the piston's outer dimension and we can assure the dimension's consistency.
MOULD: We can make the mould by ourselves.
OPERATORS: Only need to put the powder matallurgy products on the table and take out of
the finished pistons from the table.
One person can operate several machines.
Competitive advantage:
superior hard chrome piston finish
maximum safety and stability
available for different types of vehicles
customer own design available
optimum corrosion resistance
superior design and engineering
Application:
All PTFE banding piston with different size rang from 20mm to 45mm

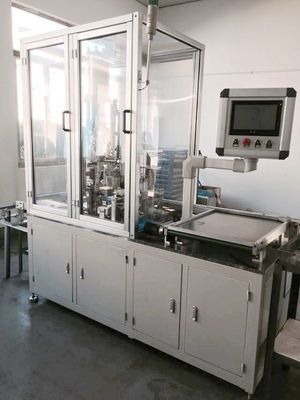

Picture show
