| Place of Origin: | ZHE JIANG , CHINA |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | XYJD-GM03J |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | STANDARD EXPORTING PACKAGE WITH WOODEN BOX |
| Delivery Time: | 3-4 MONTHS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 SET PER 3 MONTHS |
| MACHINE TYPE: | PRODUCTION | MAIN COMPONENT: | CYLINDER AND PLC |
|---|---|---|---|
| DIMENSION: | 15000mm×1000mm×1200mm | Voltage: | 380V |
| Power: | 20KW | TECHNOLOGY: | OEM |
| AIR PRESSURE: | 0.5-0.7MPa | ||
| High Light: | groove making machine for sinter piston,sinter piston groove making machine,plc groove making machine |
||
Automatic Grooving Making Machine For Sinter Piston With Different Size Range
Technical parameters
| Item | Technical parameters |
| Machine name | CNC Automatic Grooving Machine |
|
Dimension(L x W x H) |
1760mm×1300mm×1600mm |
| Machine weight | 1500kg |
| Rated voltage | 380V |
| Rated frequency | 50Hz |
| Maximum power | 5kw |
| Lathe | CNC lathe |
| Control system |
CNC lathe program PLC program |
| Equipment accuracy | 0.001mm |
|
Maximum speed of spindle |
3000r/min |
|
Processable products |
All kinds of piston groove processing and can be used as a conventional CNC lathe |
| Feeding system |
Feeding of vibrating disc Piston front and back identification |
| Discharge system |
Conveyor belt Rotating disc discharge |
Purpose:
To make the slots for sinter piston, size from 20mm to 45mm
Competitive advantage:
1.Easily operation
2.Machine can adjust and re-design by customer's demand
3.Have high efficiency
4.Have good uniformity
Application:
All sinter piston with different size rang from 20mm to 45mm

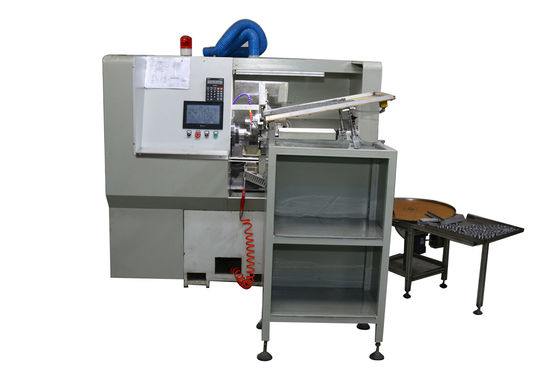

Picture show
 |
