| Place of Origin: | ZHE JIANG , CHINA |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | XYJD-SMB08 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | STANDARD EXPORTING PACKAGE WITH WOODEN BOX |
| Delivery Time: | 3-4 MONTHS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 SET PER 3-4 MONTHS |
| MACHINE TYPE: | PRODUCTION | MAIN COMPONENT: | CYLINDER, MOTOR |
|---|---|---|---|
| DIMENSION: | 800mm×1050mm×1250mm | Rated Voltage: | 380V |
| Total Power: | 300W | Air Pump Pressure: | 0.5～0.8MPa |
| High Light: | automatic banding machine,automatic grooving machine |
||

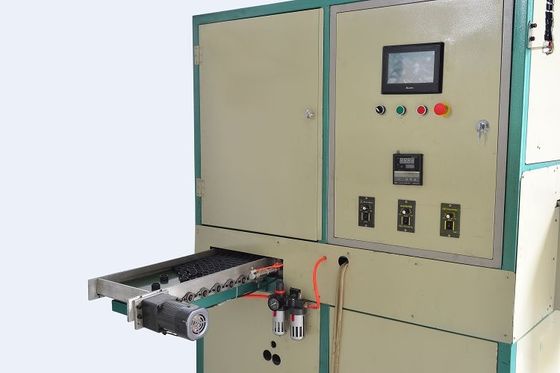

Automatic transport belt skirting machine produce shock pistons with size consistency
Can produce all the pistons in the following sheet
| ø25 | 24.98*25.17*9.8 | ø27 | 26.95*27.25*9.5 | |
| 24.88*25*10.5 | 26.92*27.02*9.5 | |||
| 24.95*25.25*9.8 | 26.94*27.15*10 | |||
| 24.92*25.07*9.5 | 26.86*27.3*6 | |||
| 24.86*25.3*12.5 | 26.98*27.37*6 | |||
| ø30 | 29.88*30.3*7 | ø31 | 30.86*31.3*7 | |
| Piston size | 29.95*30.25*7 | ø32 | 31.88*32.3*7 | |
| unit: mm | 29.92*30.25*10 | 31.95*32.25*10.5 | ||
| 29.98*30.17*10 | 32*11.5 | |||
| 30*10 | 31.92*32.4*10.5 | |||
| 29.86*30.3*9 | ø36 | 35.9*36.2*9 | ||
| 29.97*30.07*9.5 | 35.95*36.25*11.5 | |||
| ø35 | 34.92*35.4*10.5 | 36*11.5 | ||
| 34.95*35.25*10 | ø40 | 39.96*9 | ||
| 35*10 | ø45 | 44.9*45.05*10 |
Technical parameters
| Item | Technical parameters |
| Machine Name | Auto Pressing Machine |
| Machine Type | AUTOMATIC |
| Dimension(LxWxH) | 800mm×1050mm×1250mm |
| Rated Voltage | 380V |
| Total power | 300w |
| Air Pump Pressure | 0.5～0.8MPa |
TEAM: We have a technical team to develop automatic and semi-automatic machines.
DIMENSION: We can get the pistons with PTFE banding on OD and can highly improve work efficiency
and lower the cost. Infrared ray can control the piston's outer dimension and we can assure the
dimension's consistency.
MOULD: We can make the mould by ourselves.
OPERATORS: Only need to put the powder metallurgy products on the table and take out of the finished
pistons from the table.
One person can operate several machines.
To assure the appearance of the products, we will improve to use long conveyer directly to work table
If you are interested in such machines, we can offer the detail information if you need. Our technical
persons can help to set up and debug the machines.
Our technic persons can help to set up and debug the machines.
Output:500-600 pcs pistons/hour
Electricity:380V
Tooling set up:15 minutes
Piston diameter:25mm-46mm
Piston height:12mm-20mm
Machine lead time:2 months
Tooling lead time:3 weeks
Machinery spares:2 weeks
Machinery spare set:available
Pistons in /out:on table
Infrared ray can control the piston's outer dimension and we can assure the dimension's consistency.
MOULD: We can make the mould by ourselves.
OPERATORS: Only need to put the powder matallurgy products on the table and take out of
the finished pistons from the table.
One person can operate several machines.
Competitive advantage:
superior hard chrome piston finish
maximum safety and stability
available for different types of vehicles
customer own design available
optimum corrosion resistance
superior design and engineering
Application:
All PTFE banding piston with different size rang from 20mm to 45mm
Picture show
