| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ25mm |
| Minimum Order Quantity: | 603pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000,000pcs per month |
| Product Name: | Shock Absorber Piston | Filler Of Bands: | Graphite Carbon |
|---|---|---|---|
| Material Of Bands: | PTFE | Color: | Black |
| Application: | Car Shocks | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 25.05mm | Sinter Temp.: | 375 ℃ |
| Highlight: | shock absorber parts,damper piston |
||
35mm advanced PTFE Banded Shock Absorber Piston Of Good seal and proper hardness for trucks
Specifications:
Size: D35*D10*12
Lip OD and bottom OD design
Advanced PTFE and filler as banding material
Can produce according to customer's design
pistons with excellent properties:
Density : 2.16g/cm3
Hardness : 60.5HRB
Tensile strength : 20.2 Mpa
Elangation @ break : 304%
Why choose XIAYI?
1. TS 16949 certificated
2. Technical team to design and produce banding machine
3. Produce PTFE ring disc in XIA YI company, can assure the properties and quality for the ring disc.
4. With more than 10 years experience
5. A whole complete sets of testing equipment for shock absorber pistons
Properties:
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
dimension 25mm shock absorber piston kit used in different automotives
choose imported raw material
pistons are used in light cars
XIAYI banding technology
Conventional Design
(1) Finished OD Tolerance of +/-50 Microns
(2) Requires Purchase and Inventory of Banding
(3) Requires Secondary Operations
(4) Banding Can Dislodge or Shift
(5) Potential for Uncontrolled Leak Paths
XIAYI is a professional team,producing different sizes of shock absorber pistons.
We can design and produce new samples and also we can produce full automatic banding machines
which are used to produce banded shock pistons.
There is a laboratory, we can do some tests for different fillers and raw material.We have plenty of testing
machines such as tensile strength testing machine, abrasion
testing machine, friction & blow-off testing machine(we produce this machine by ourselves,this is non-
standard testing machine which are used to test banded shock pistons).
We do our works with our heart and soul and we have confident to supply you products with good quality
and best survice.
We produce automatic banding machine by ourselves and we have related testing equipment such as
projector, analytical balance, friction-abrasion testing machine, blow-off testing machine, friction testing
machine and so on.We can test most of properties in our company and others we can’t test we will send
the standard sample blocks to Shanghai Plastics Research Institute.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

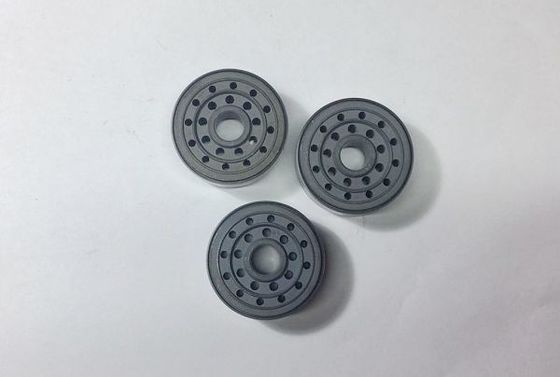

Picture show:
