| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ32mm |
| Minimum Order Quantity: | 2,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton and then reinforced with wooden case for outer packing |
| Delivery Time: | 10 days after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300,000pcs per month |
| Product Name: | Shock Piston | Density Of Sinter Piston: | More Than 6.5g/cm3 |
|---|---|---|---|
| Material Of Bands: | PTFE | Density Of Bands: | 2.15g/cm3 |
| Application: | Front Shock Absorber | Outer Diameter: | 31.95mm |
| High Light: | banded piston,shock absorber parts |
||
32mm PTFE Banded Shock absorber Piston With material Shore Hardness 57 HRB
XIAYI can mix PTFE and other fillers together, get the sintering PTFE cylinder.
We can also produce PTFE ring discs, can band PTFE in our house.
XIAYI can also design and manufacture PTFE piston banding machine.
We produce this machine by our own purpose, sell out to other powder metallurgy and shock absorber
factory for such machine.
Technical parameters of automatic banding machine
| ITEMS | TECHNICAL PARAMETERS |
| Dimensions(L×W×H) | 1600mm×1000mm×2100mm |
| Input Voltage | 220V |
| Input Power | 2000w |
| Pressure of Air Pump | 0.5-0.7MPa |
| Electrical Heating Wire | 220v/1200w |
| Heating temperature range | 0-400℃ |
| Type of Cooling | Water cooling |
| Production Efficiency | ≥400pcs/ hour |
| Qualified product rate | ≥99% |
Specifications:
• 4 round and square holes
• conventional shock piston
• net weight is 35.29g
• we can do drawing load test for banded piston without band slippage after test.
|
Physical performance for shock piston |
tensile strength |
More than 15MPa |
|
elongation @ break |
More than 200% |
|
|
shore hardness |
57 - 61 |
|
|
density |
2.15 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.3 |
|
|
highest working temperature |
260℃ |
Description:
Upper OD 32.07 - 32.27mm
Nether OD 31.94 - 31.98mm
Manufacturability of powder metal parts:
Auto Mechanical Press: 50T, 100T, 140T...
Hydraulic Press: 100T, 315T, 600T, 800T
Six sinter furnaces, including one harden Sinter Furnace
Heat treatment: carbonitriding quenching and high frequency quenching
Ultrasonic clearing and auto de-burring
In-house tooling making: EDM, wire cutting machine
Durability testing:
| Stroke | 50mm |
| Speed | 1m/s |
| Side load | 30kgf |
| Temperature | 80℃+/-10℃ |
| Duration 3 million cycles | |
No band peel off or breakage after test
|
Test Ability |
Carbon sulfur determinator |
| Metallurgic microscope | |
| Hydraulic universal material tester | |
| Hardness testers | |
| Pneumatic measuring instrument | |
| Measuring projector | |
| Electrical profilometer | |
| CMM |
Strong R&D team
Responsible staffs
Clean workshop
We will bring you pistons with good quality and competitive price.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
XIAYI can produce bands rings to low down the cost and control the quality at home, at the same time we
can design and produce automatic banding machine and non-standard testing machine, can test drawing
force testing and oil immersion testing.

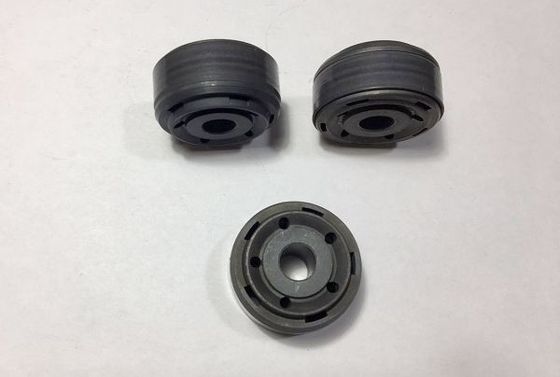

Picture show:
