Mos2 Filled Conventional Shock Absorber Piston Outer Diameter 30.5mm

Products

Guide Ring

sales@xyptfe.com

008613586885132

Contact Now

Mos2 Filled Conventional Shock Absorber Piston Outer Diameter 30.5mm

MOQ:	503pcs
Price:	negotiation
Standard Packaging:	Packed in carton and then reinforced with wooden case for outer packing
Delivery Period:	10 days after payment
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	300,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

IATF16949:2008

Model Number

Φ30.5mm

Product Name:

Shock Piston

Density Of Sinter Piston:

More Than 6.5g/cm3

Material Of Bands:

Density Of Bands:

2.15g/cm3

Application:

Front Shock Absorber

Outer Diameter:

30.5mm

Highlight:

banded piston

damper piston

Product Description

30.5mm MoS2 filled PTFE Banded Shock Absorber Piston applied in car Shocks export to

France

Specifications:

100% tested by Go no-Go gauge

Coaxiality can be control within 0.05mm

4 round and square holes

conventional shock piston

net weight is 25.29g

we can do drawing load test for banded piston without band slippage after test.

Physical performance for shock piston	tensile strength	More than 15MPa
	elongation @ break	More than 200%
	shore hardness	57 - 61
	density	2.15 – 2.19 g/cm³
	wear	Less than 50mg
	friction coefficient	Less than 0.3
	highest working temperature	260℃

Description:

OD 30.445-30.495 mm

Manufacturability of powder metal parts:

Auto Mechanical Press: 50T, 100T, 140T...

Hydraulic Press: 100T, 315T, 600T, 800T

Six sinter furnaces, including one harden Sinter Furnace

Heat treatment: carbonitriding quenching and high frequency quenching

Ultrasonic clearing and auto de-burring

In-house tooling making: EDM, wire cutting machine

Durability testing:

Stroke	50mm
Speed	1m/s
Side load	30kgf
Temperature	80℃+/-10℃
Duration 3 million cycles

No band peel off or breakage after test

Test Ability	Carbon sulfur determinator
	Metallurgic microscope
	Hydraulic universal material tester
	Hardness testers
	Pneumatic measuring instrument
	Measuring projector
	Electrical profilometer
	CMM

Strong R&D team

Responsible staffs

Clean workshop

We will bring you pistons with good quality and competitive price.

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI can produce bands rings to low down the cost and control the quality at home, at the same time we

can design and produce automatic banding machine and non-standard testing machine, can test drawing

force testing and oil immersion testing.

Picture show:

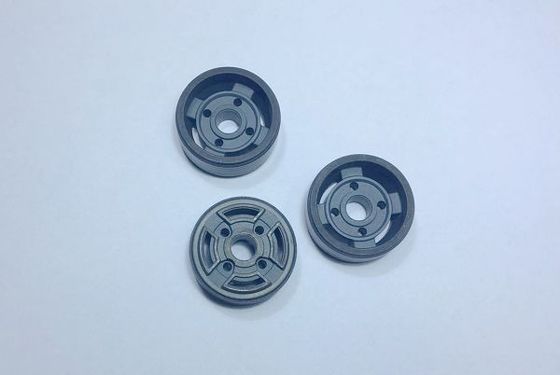

Mos2 Filled Conventional Shock Absorber Piston Outer Diameter 30.5mm 0

Mos2 Filled Conventional Shock Absorber Piston Outer Diameter 30.5mm 1
