Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test

Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test

  • Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test
  • Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test
  • Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test
Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test
Product Details:
Place of Origin: China
Brand Name: XIAYI
Certification: ISO9001:2008
Model Number: Φ40mm
Payment & Shipping Terms:
Minimum Order Quantity: 5,000pcs
Price: negotiation
Packaging Details: Pack one by one in plastic box
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
Product Name: Shock Pistons Material Of Sinter Parts: Fe - C - Cu
Material Of Bands: Filled PTFE Color: Black
Application: Front Shocks Density Of Bands: 2.15 G/cm3
Outer Diameter: 39.98mm Working Temp.: 260 ℃
High Light:

banded piston

,

damper piston

Blow - off testing Custom Shock absorber Piston with stand one million cycles fatigue test





Description:



No scuffing anc scratch Shock absorber Pistons



SIZE: D25XD8X11.5



• Square oil holes design



• Flared OD: 25.05-25.25mm, banded OD: 24.945-24.995mm



• Banded height: 9.75-10.25mm



• With PTFE banded on OD



• We can produce according to the customer's drawing



• Middle part (sinter part), we can use the material as the customer's demand



• Carbon content is 0.1%, copper content is 3% and balance for iron material





Specifications:



Physical performance for shock pistons

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness (bands)

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

hardness (sinter piston)

HRB70-90

Different fillers

carbon fiber

glass fiber

graphite

Molybdenum disulfide

carbon





Piston advantages:



1. Wear and corrosion resistance



2. Efficiency steaming treatment



3. Reduces friction and ensure smooth rod reaction



4. PTFE banded piston



5. It is equipped with piston rings to provide a good seal between the cylinder wall and piston



6. Increased seal durability



We own the following testing equipment to assure the quality and properties of the mixed material and



banding effectiveness.





1. Tensile strength testing machine



2. Abrasion & friction coefficient testing machine



3. Shore durometer



4. Rockwell hardness tester



5. Density balance



6. Fatigue testing machine



7. Blow-off & friction testing machine





Xia Yi is specializing in producing damper pistons. Our products are not only selling well in many cities in



China, but also exported to many overseas countries and regions, such as Africa, South America,



Southeast Asia and the Middle East. Our enterprise is trying our best to provide higher quality products at



lower price, and bring you satisfactory customer service. We always optimize our products to meet



different requirements of customers. We also provide OEM services. We do business in good faith and



enjoy a good reputation for our good after-sales service.





Applications:



In car or motorbike front or rear shock absorbers





Competitive Advantage:



1. Consistency in size.



2. Infrared ray detect the out diameter in automatic banding machines



3. Produce PTFE disc by Xia Yi, can control the quality itself.

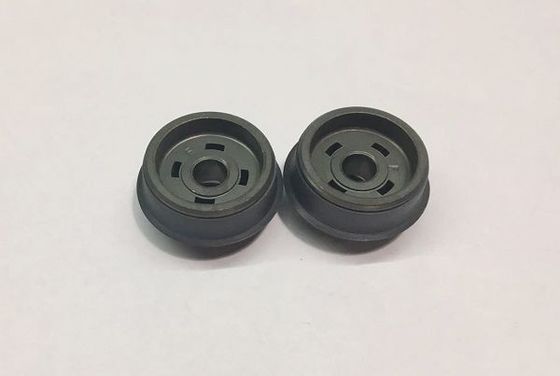

Picture show:



Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test 0



Blow Off Testing Custom Damper Piston With Stand One Million Cycles Fatigue Test 1
