| Place of Origin: | NINGBO |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | K25-50-1233-6 |
| Minimum Order Quantity: | 200 sets |
|---|---|
| Price: | USD1.25~ 1.45 /set |
| Packaging Details: | 10-50 PCS in one carton or plastic blister tray, outside wooden pallet or wooden box. |
| Delivery Time: | 15-25days after PO confirmed |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 sets per day |
| Outer Diameter: | 12.5MM | Total Length: | 310MM |
|---|---|---|---|
| OD Of One End: | M8 X 1.25 | OD Of Another End: | M10 X 1.25 |
| Material: | S 45 C | Chrome Thickness: | 10 ~ 25 μm |
| High Light: | hollow piston rod,hydraulic piston rod |
||

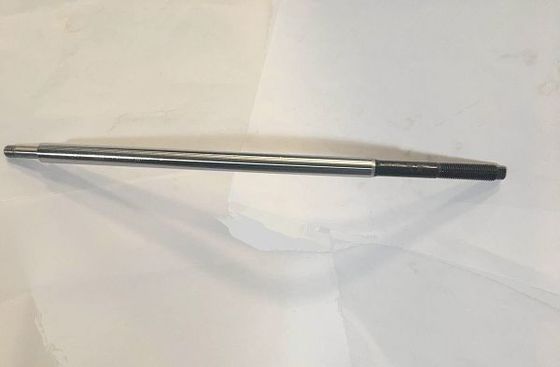

reasonable Price 45 # Chrome plated Shock Absorber Piston Rod with hardness HRC 40-46
PARAMETER
| Item No. | K25-50-1233-6 |
| Body Material | #45 #35 |
| Diameter | D12.5-0.01/-0.03 |
| Length | customizable |
| Depth of quenched layer | 0.6-1.0 |
| Hardness | HRC 40-46 |
| Roughness | Rz< 0.65 |
| Single Plating Thickness | >15 μm |
| Plating | 900-1200 HV0.1 |
| Microcrack | >600 pcs/m² |
| Blending test maximum pressure 52KN, transformation over 15mm | |
Specification:
| Chrome Thickness | 10~25 μm |
| Chrome Hardness | 850 HV Min |
| Roughness | Ra 0.2 Micron Max |
| Straightness | 0.2/1000mm |
| Yield Strength | According to the steel material and customer requirement |
| Tensile Strength | According to the steel material and customer requirement |
| Elongation | According to the steel material |
| Bend Test | According to customer requirement |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
| Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
| Quality Assurance | IATF16949:2016 certified/SGS/TUV |
| Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
|
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
| Japan 4-axis GAMA DMN-650 machining center | |
| Cylindrical Bore Grinders | |
| Wire EDM | |
| Magnetic grinding machine/ grinding Vibration machining | |
| Oven | |
| Ultrasonic cleaning machine | |
| Vacuum packing machine | |
|
Inspection device |
VMS2.5d measuring machine |
| Japan Mitutoyo tool microscope | |
| Japan Mitutoyo digimatic micrometer | |
| Japan Mitutoyo hardness tester | |
| Japan Mitutoyo calipers | |
| Japan Mitutoyo dial indicator | |
| Japan Mitutoyo height measuring tool | |
| Japan Mitutoyo tubular inside micrometer | |
| Japan Marble platform | |
| Go No Go gauge | |
| Electronic digital display caliper Ring gauges | |
|
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Other questions:
Q1. Are you a Manufacture or Trading Company?
A1:We are manufacturer. We have been in this line for more than 10 years
Q2. What kinds of parts can you supply?
A2: 1. Piston rod 2. Oil seal 3. Rubber parts 4. Pistons. 5. Stamping parts 6. Powder metallurgy parts etc.
Q3. What is your production Lead Time?
A3: 5 working days for goods in stock ,15-45 days for mass products.
Q4. What is your payment way?
A4:We accept payment by western union, T/T, L/C. Normally. 30% deposit in advance, 70% balance before shipment.
Picture:
