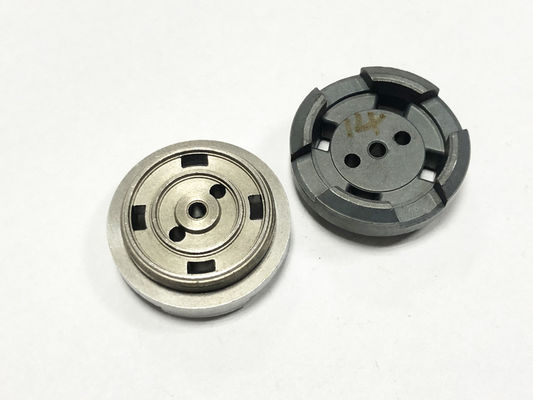

Sintered Metal HRB 60-100 Shock Base Valve
  • name
  • name
  • name
  • name

Sintered Metal HRB 60-100 Shock Base Valve

MOQ: Negotiation
Price: Negotiation
Standard Packaging: Standard Export Wooden Case
Delivery Period: 7-15 working days
Payment Method: L/C, T/T
Supply Capacity: 1000 units per month
Detail Information
Product Description
Detail Information
Place of Origin
NINGBO,CHINA
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
foot valve
Part Name:
Base Valve
COLOR:
CUSTOMIZED
Material:
FE-C-CU
Hardness:
HRB70-100
Density:
6.6
Application:
Shock Absorber
Highlight:

HRB 60 Shock Base Valve

,

HRB 100 Shock Base Valve

,

Shock Sintered Metal Base Valve

Product Description

Part Name: Speed Range 1 - 80 rpm Gear Speed Reducer used in crane slewing system



Part Model: DYP series



Especially used in crane slewing system

Applications:

Hydraulic transmission of cement pump truck, marine machinery, rotary reducer, port, mining, agriculture, forestry, metallurgy and other machinery.



Performance parameters:

Model

Total Displacement

ml/r

Rated Torque

N.m

Speed Range

r/min

 Motor Type Rotation Reducer Type Brake Type
DYP3-1250 1215 3382 1-80 GM1-250 C3-5 Z13
DYP3-1450 1450 4022 1-80 GM1-300 C3-5 Z13
DYP3-1600 1570 4361 1-80 GM1-320 C3-5 Z13



DYP series rotary reducer can be equipped with the corresponding valve body, consisting of hydraulic motor, planetary reducer, disc brake and various function valve distributor. It has small radial size, light weight, large torque, output shaft can withstand large radial and axial external forces, high starting efficiency, superior low speed stability, high transmission efficiency, low noise, good economy and other advantages.



Detail drawings without brake:

Sintered Metal HRB 60-100 Shock Base Valve 0



Detail drawings with brake built-out:

Sintered Metal HRB 60-100 Shock Base Valve 1



Detail drawings with brake built-in:

Sintered Metal HRB 60-100 Shock Base Valve 2



Output shaft form:

Sintered Metal HRB 60-100 Shock Base Valve 3
