Full Automatic Shock Piston Grooving Making Machine With Various Process

MOQ:	1 SET
Price:	NEGOTIATION
Standard Packaging:	STANDARD EXPORTING PACKAGE WITH WOODEN BOX
Delivery Period:	3-4 MONTHS
Payment Method:	L/C, T/T
Supply Capacity:	1 SET PER 3-4 MONTHS

Detail Information

Product Description

Detail Information

Place of Origin

ZHE JIANG , CHINA

Brand Name

XIAYI

Certification

IATF16949:2016

Model Number

XYJD-GCJ06A

MACHINE TYPE:

PRODUCTION

MAIN COMPONENT:

CYLINDER, MOTOR

DIMENSION:

800mm×1050mm×1250mm

Rated Voltage:

Total Power:

Air Pump Pressure:

0.5～0.8MPa

Highlight:

grooving making shock piston machine

Full Automatic shock piston machine

shock piston grooving making machine

Product Description

Full Automatic Shock Piston Grooving Making Machine With Various Process

Technical parameters

Items	Technical parameters
Machine name	CNC automatic groove cutting machine
Dimensions(LWH) (Excluding feeding & ejection)	2400mm×2200mm×1600mm
Weight	1500kg
Rated voltage	380V
Rated frequency	50Hz
Max power	5kw
Lathe	CNC
Control system	CNC built-in program +PLC
Precision	0.01mm
Max speed for mainshaft	3000RPM
Products	Cutting grooves for pistons or used as a conventional CNC lathe
Feeding system	Vibrating plate + automatic recognition flip
Ejection system	Conveyor belt + rotating plate
Cycle time	3-10 s/pcs(based on process demanded)

TEAM: We have a technical team to develop automatic and semi-automatic machines.

DIMENSION: We can get the pistons with PTFE banding on OD and can highly improve work efficiency

and lower the cost. Infrared ray can control the piston's outer dimension and we can assure the

dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder metallurgy products on the table and take out of the finished

pistons from the table.

One person can operate several machines.

To assure the appearance of the products, we will improve to use long conveyer directly to work table

If you are interested in such machines, we can offer the detail information if you need. Our technical

persons can help to set up and debug the machines.

Our technic persons can help to set up and debug the machines.

Output:500-600 pcs pistons/hour

Electricity:380V

Tooling set up:15 minutes

Piston diameter:25mm-46mm

Piston height:12mm-20mm

Machine lead time:2 months

Tooling lead time:3 weeks

Machinery spares:2 weeks

Machinery spare set:available

Pistons in /out:on table

Infrared ray can control the piston's outer dimension and we can assure the dimension's consistency.

MOULD: We can make the mould by ourselves.

OPERATORS: Only need to put the powder matallurgy products on the table and take out of

the finished pistons from the table.

One person can operate several machines.

Banding ring pictures:

Full Automatic Shock Piston Grooving Making Machine With Various Process 0

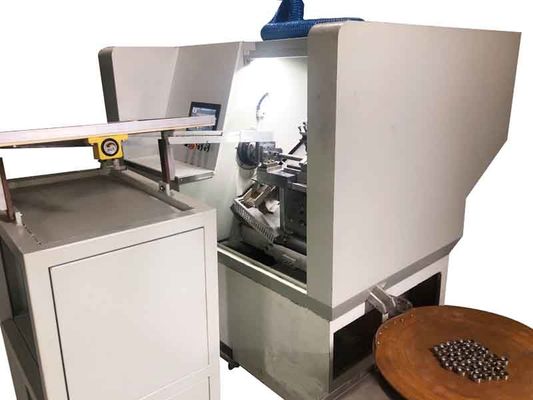

Full Automatic Shock Piston Grooving Making Machine With Various Process 1

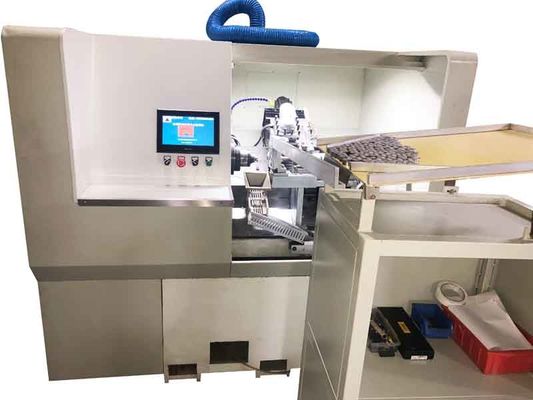

Full Automatic Shock Piston Grooving Making Machine With Various Process 2

Competitive advantage:

superior hard chrome piston finish

maximum safety and stability

available for different types of vehicles

customer own design available

optimum corrosion resistance

superior design and engineering

Application:

All sinter pistons with different size

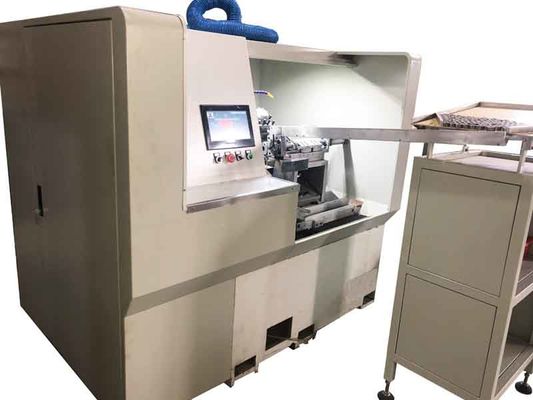

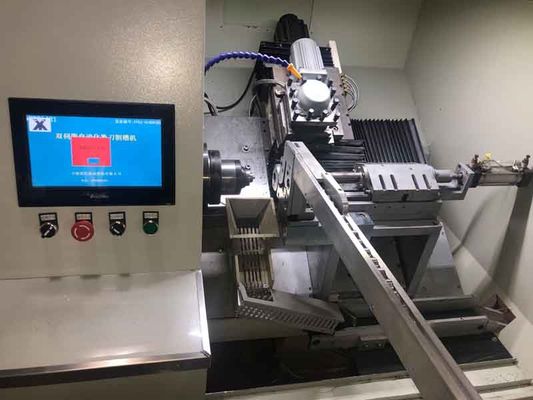

Picture show
