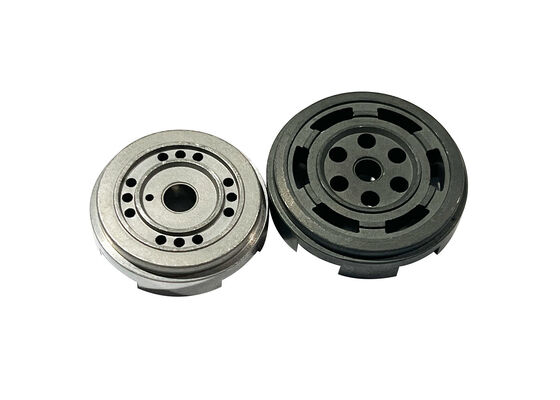

Precision Sintered Shock Base Valve for Consistent Damping Performance

40mm Base Valve Shocks Absorber Part With Steam Treatment and density more than 6.5

This 40mm precision sintered base valve (foot valve) is engineered from FC-0208 Fe-C-Cu powder metallurgy material with a guaranteed density exceeding 6.5 g/cm³. Designed for automotive shock absorber applications, it delivers strong hardness (65HB) and consistent hydraulic damping performance. Steam-treated for enhanced surface durability and corrosion resistance, this component is manufactured by XIAYI under ISO 9001:2008 certified quality systems with comprehensive testing capabilities including CMM, material analysis, and durability validation.

With many years of working experience as industrial design and quality engineers, XIAYI excels at Powder Metallurgy process, casting, machining technology and quality management. We are also familiar with TS16949 system and clean production. To fulfill OEM outsourcing parts requirements from customers worldwide, we share our professional technology and quality management experience — our aim is to optimize customer design and reduce cost based on different process technology.

• Product Name: Foot Valve (Base Valve)
• Model Number: XYJD-PM1223-B
• Material Grade: FC-0208 (Fe-C-Cu)
• Valve Diameter: 40mm
• Sintered Density: >6.5 g/cm³
• Hardness: 65HB
• Press Machine: 80-150T
• Surface Treatment: Steam treatment (standard)
• Sample Time: 25 days
• Service: OEM / ODM

XIAYI offers a comprehensive range of powder metallurgy materials to meet diverse application requirements:

• P/M Copper and Copper Alloys
• P/M Iron and Carbon Steel
• Iron and Carbon Steel
• Iron-Copper and Copper Steel
• Iron-Nickel and Nickel Steel Low Alloy Steel
• Commix Low Alloy Steel
• Sinter Hardened Steel
• Diffusion Alloyed Steel
• Copper Infiltrated Iron

Every foot valve follows XIAYI's systematic production flow with quality inspection at each stage:

1. Material Receiving (IQC inspection)
2. Powder Mixing — Precise blending of metal powders with lubricants
3. Compacting — High-pressure forming on 80-150T presses
4. Sintering — Controlled atmosphere furnace for metallurgical bonding
5. Post Treatment — Steam treatment, sizing, deburring
6. QC Inspection — Dimensional, density, and hardness verification
7. Package and Delivery — Protective packaging for safe transit

Much of our modern day equipment is carried out by computer numerical control (CNC), in which computers are used to control the movement and operation of mills, lathes, and other cutting machines — ensuring consistent precision across every production batch.

• Carbon sulfur determinator — Material chemistry verification
• Metallurgic microscope — Grain structure and porosity analysis
• Hydraulic universal material tester — Mechanical strength validation
• Hardness testers — Rockwell/Brinell hardness verification
• Pneumatic measuring instrument — Non-contact precision measurement
• Measuring projector — Optical profile inspection
• Gear testing instrument — Gear geometry verification
• Electrical profilometer — Surface roughness analysis
• CMM (Coordinate Measuring Machine) — 3D dimensional accuracy

Sinter foot valve, strong hardness 65HB Fe-C-Cu material used in car shock absorbers. XIA YI produces different kinds of powder metal parts. They can be used in different areas such as automobile, motorcycle and various industries.

Sintered Parts Capabilities:

1. Powder Metallurgy, oil impregnated for self-lubrication
2. Iron, copper, iron copper, bronze material options
3. Professional Fe/Cu based powder metallurgy parts manufacturer
4. Complete process flow: Material → IQC → Mixing → Compacting → Sintering → Post Treatment → QC → Package and Delivery

XIAYI powder metallurgy components serve a wide range of industries worldwide:

• Automotive Shock absorber parts, transmission gear, structural components
• Motorcycle Suspension parts, engine components, brake system parts
• Power Transmission Spur gear, bevel gear, helical gear, timing pulley, rotor and stator
• Bearings & Bushings Sintered bronze bearing, copper sleeve, sleeve bearing, bushing, bush, pulley
• Agricultural Machinery Durable wear-resistant components for heavy-duty equipment

Our integrated approach combines industrial design expertise, quality engineering management, and ISO 9001:2008 certified processes to deliver components that optimize your designs and reduce total costs.
