| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ20mm |
| Minimum Order Quantity: | 2,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | One week after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000,000pcs per month |
| Product Name: | Shock Absorber Piston | Filler Of Bands: | Carbon Fiber |
|---|---|---|---|
| Material Of Bands: | PTFE | Color: | Black |
| Application: | Motorbike Front Shocks | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 19.95mm | Working Temp.: | 260 ℃ |
| High Light: | banded piston,damper piston |
||
20mm Carbon fiber filled PTFE Shock Absorber Piston ring for Motorbike front shocks
Specifications:
small shock absorber piston
conventional design
with PTFE banded on OD
we can produce according to the customer's drawing
material of sinter piston: FC-0208 or Hoganas powder
material of PTFE bands: carbon firber or other fillers
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
Filled PTFE Suspension Piston banded piston produced by skirting machine apply in automotives front
shock absorber
Xia Yi is specialized in producing shock absorber pistons, PTFE piston rings and related powder metal
parts. We have set up appearance control standard.
Pistons are used in front or rear shock absorbers from different automotives or motorcycles
Spec.: D20XD8X12.5
Filled PTFE banded piston
Unique oil holes design
We produce automatic banding machine by ourselves and we have related testing equipment such as
projector, analytical balance, friction-abrasion testing machine, blow-off testing machine, friction testing
machine and so on.We can test most of properties in our company and others we can’t test we will send
the standard sample blocks to Shanghai Plastics Research Institute.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

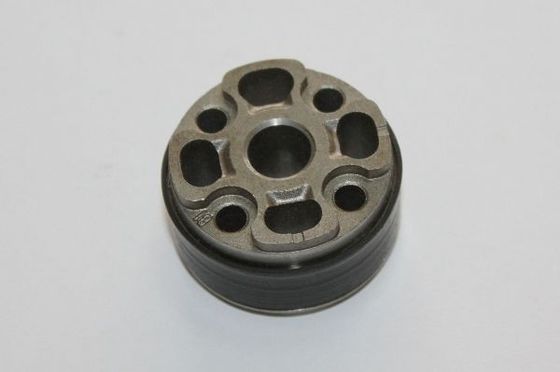

Picture show:
