PRODUCTS DETAILS

Home > Products >

Filled PTFE banded piston for radiator application HRB 57-61 with skirting design

Products

Guide Ring

sales@xyptfe.com

008613586885132

Contact Now

Filled PTFE banded piston for radiator application HRB 57-61 with skirting design

MOQ:	1,000pcs
Price:	negotiation
Standard Packaging:	According to customer’s demand
Delivery Period:	Two weeks after payment
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	30,000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

Φ46mm

Product Name:

Banded Piston

Filler Of Bands:

Carbon Fiber

Material Of Bands:

Color:

Black

Application:

Household Radiator

Density Of Bands:

2.15 G/cm3

Outer Diameter:

45.95mm

Working Temp.:

260 ℃

Highlight:

banded piston

shock absorber parts

Product Description

Filled PTFE banded piston for radiator application HRB 57-61 with skirting design

Specifications:

46mm OD piston

the pistons are used in industrial radiator

net weight is 48.56g

we can do drawing load test for banded piston with no band slippage after test.

Physical performance for shock piston	tensile strength	More than 18MPa
	elongation @ break	More than 160%
	shore hardness (bands)	57 - 61
	density	2.06 – 2.19 g/cm3
	wear	Less than 50mg
	friction coefficient	Less than 0.2
	hardness (sinter piston)	HRB60-80
Technical requirements for sinter piston	Raw material F50 - U3 - 66 or FC - 0208
	Steam treatment
	OD tested by digital air gauge

Description:

Unique oil holes design, 46# banded piston for radiator or other household appliances.

Xia Yi mainly produces shock absorber pistons, industrial pistons with many different dimensions. Piston is

based on powder metallurgy, filled modified PTFE material, using a special way to combine them together,

which has dual advantage of powder metallurgy and PTFE.

We have a strong technical team to develop automatic skirting machines which can assure the

consistency of the pistons and also can improve the work efficiency. Compared with other suppliers, we

are sure we can offer you the best competitive price.

(1)Advantage of powder metallurgy:

Unique chemical composition and mechanical physical properties

(2)Advantage of PTFE:

Chemical and aging resistance, temperature endurance and no-sticky performance

(3)Advantage of piston:

High carrying capacity, good wear resistance, low friction coefficient, good seal and so on

SPEC: D46

unique hole design lateral force 800N added after piston is in closed in dampers, amplitude +/-25mm

piston ring don't drop down and no abnormal abrasion after 40,000,000 times vibration

net weight is 48.56g

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

Proper fillers can reach good seal and friction

Tooling designed by XIAYI can assure the delivery date

A whole set of testing equipment

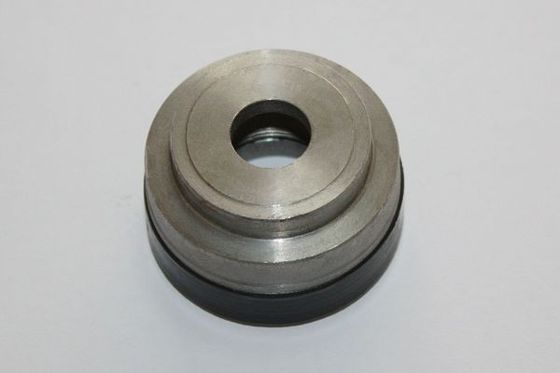

Picture show:

Filled PTFE banded piston for radiator application HRB 57-61 with skirting design 0

Filled PTFE banded piston for radiator application HRB 57-61 with skirting design 1
