45mm height density 6.5 band PTFE disc Piston without any defect after durability test

MOQ: 1,000pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: Two weeks after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 30,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ31mm
Product Name:
Banded Piston
Filler Of Bands:
Carbon Fiber, MoS2
Material Of Bands:
PTFE
Color:
Black
Application:
Car Rear Shocks
Density Of Bands:
2.15 G/cm3
Outer Diameter:
31.05mm
Working Temp.:
260 ℃
Highlight:

shock absorber parts

,

damper piston

Product Description



40mm height density 6.5 band PTFE disc Piston without any defect after durability test





Specifications:



• high shock absorber piston
• new design
• with PTFE banded on OD
• we can produce according to the customer's drawing
• middle part(sinter part), we can use the material as the customer's demand





Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB60-80

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge





Description:



Shock absorber piston oil cylinder piston with density 6.5g/cm3 band PTFE disc on OD



The detail information of the pistons:



1. Size: D31XD28X45



2. Material: PTFE PTFE



3. When temperature reach 100℃, expansion ratio ≤+/-1%



4. Using the testing ring, with the shock absorber oil, max frictional force is 15N



5. Piston can get through freely of the certain size of cylinder with 2N force



6. PTFE tensile strength ≥18MPa, breaking tenacity ≥200%



7. Tight integration between piston and PTFE disc. PTFE won't fall off when working in the cylinder.



Xia Yi, found in 2006, after several years’ effort, we have achieved great success in the enterprise. We



increased our workshop this year and developed several new automatic machines which highly improve



work efficiency. We have a technical team to develop automatic machine and we improve our pressing



machine and other machines to lower the cost and improve efficiency.





Advantages:



1. Consistency in size



2. Infrared ray detect the diameter



3. Strict control plan



4.100% testing for outer diameter





Applications:



Car or motorbike shock absorbers





Competitive Advantage:



Proper fillers can reach good seal and friction



Tooling designed by XIAYI can assure the delivery date



A whole set of testing equipment







Picture show:

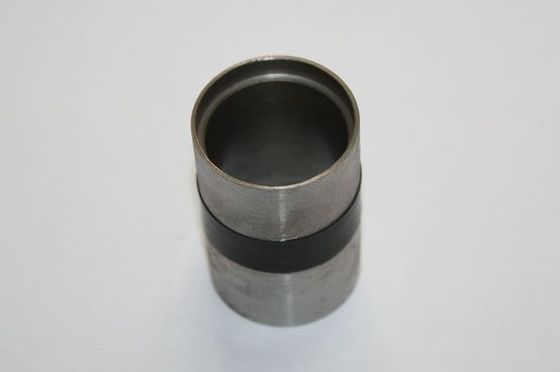

45mm height density 6.5 band PTFE disc Piston without any defect after durability test 0



45mm height density 6.5 band PTFE disc Piston without any defect after durability test 1











Tags:

damper piston,

shock absorber parts,

banded piston
