30mm 2.15 g/cm3 shock piston , powder metallurgy parts with PTFE bands

MOQ: 5,000pcs
Price: Quote according to drawings or samples
Standard Packaging: Packed in carton and then reinforced with wooden case for outer packing
Delivery Period: Two weeks after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 30,000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ30mm
Product Name:
Shock Piston
Density Of Sinter Piston:
More Than 6.5g/cm3
Hardness Of Bands:
HRB60
Hardness Of Sinter Piston:
HRB80
Application:
Car Shocks
Density Of Bands:
2.06-2.19 G/cm3
Outer Diameter:
30.05mm
Net Weight:
35.40g
Highlight:

banded piston

,

damper piston

Product Description



30mm 2.15 g/cm3 shock piston , powder metallurgy parts with PTFE bands





Specifications:



• 6 holes design


• can do slide resistance test according to the customer's demand


• piston should slide down uniformity both in positive and contrary direction, no damping stagnation


• test velocity is 3mm/min, Static strength damage:11.27KN





Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness

57 - 62

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

attrition

Less than 10mg





Description:



XIAYI company mainly produce different kinds of shock absorber pistons, dimensions from 20MM～50MM,



can be used in motorcycle or car’s shock absorbers. Based on powder metallurgy material, banded filled



PTFE discs outside, has the advantages of low friction and good wear resistance.



Dimension: D30.05XD8.02X10.5



Multiple-twin oil holes design,



No scratch & crack on banded surface



Net weight is 35.40g



Density: powder metallurgy parts no less than 6.8g/cm3, filled PTFE material is 2.06-2.19 g/cm3



Hardness: powder metallurgy parts is 65HRB



filled PTFE sample block(shore hardness) is 60



Steam treatment: 2H high temp steam holding time Thickness of Fe3O4: 0.004-0.005mm



Die tooling design and making in house





Applications:



Normally used in different kinds of cars such as passenger car, truck, lorry, racing car





Competitive Advantage:



Xia Yi own two sets of automatic powder blending machine, can produce PTFE rings in house.



Xia Yi has ability to design and manufacture non-standard testing machine and automatic banding



machine.

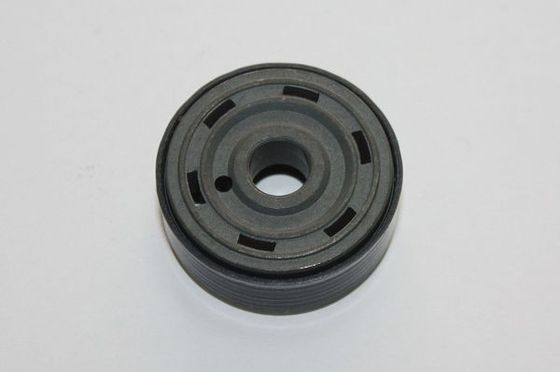

Picture show:



30mm 2.15 g/cm3 shock piston , powder metallurgy parts with PTFE bands 0



30mm 2.15 g/cm3 shock piston , powder metallurgy parts with PTFE bands 1



Tags:

damper piston,

shock absorber parts,

banded piston
