FC-0208 / FC-0205 Sinter Metal Powder Foot Valve Applied In Automotive Shocks

Products

Guide Ring

sales@xyptfe.com

008613586885132

Contact Now

FC-0208 / FC-0205 Sinter Metal Powder Foot Valve Applied In Automotive Shocks

MOQ:	500pcs
Price:	negotiation
Standard Packaging:	Packed in plastic box and then in carton, and then reinforced with wooden case for outer packing
Delivery Period:	One month after technical details are confirmed
Payment Method:	T/T, Western Union, L/C
Supply Capacity:	50,000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

Customized Power Metallurgy

Density:

6.0-7.0 G/cm3

Crushing Strength:

More Than 6KN

Tensile Strength:

7.3 X 103 To 2.9 X 104

Hardness:

60-85HRB

Yield Strength:

5.1 X 103 To 2.3 X 104

Surface:

Steam Treatment

Highlight:

Sintered shock base valve

shock base Sintered valve

OEM shock base valve

Product Description

FC-0208 / FC-0205 Sinter Metal Powder Foot Valve Applied In Automotive Shocks

Specifications:

Product name	Powder metallurgy, Hydraulic motor parts
Material	steel & iron
Certifications	ISO9001:2008
Technology	Powder metallurgy
Surface treatment	As per customers' requirements
Production Ability	10000 ton per year
Export Area	Europe/North America/Japan/Mid east/Africa

Description:

Product name: powder metallurgy foot Valve for Shock Absorber

Raw Materials: MPIF FC-0205

Feature:

1. 25# foot valve

2. Density from 6.3-6.7 g/cm3

3. Hardness: HRB60-100

4. Steam treatment: 2H high temp steam holding time, thickness of Fe3O4:0.004-0.005mm

5. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE band piston and so on.

Inspection Ability

1. IQC

2. IPQC

3. FQC

4. QE

5. CPK>1.67 for significant dimensions

6. Significant process should 100% checking for your powder metallurgy parts.

What equipment do we have?

1. Over 20 Hydraulic Presses: 80T, 100T, 250T, 315T, 500T, 800T

2. Four Automatic sinter furnaces

3. Heat treatment: Carbonitriding quenching

4. Ultrasonic clearing and auto de-burring

5. Vacuum oiled machine for rust proof

6. Automatic Steaming Machining for rust proof

7. In-house tooling making: EDM, wire cutting machine

8. Strength in machining: Machine center, CNC milling, Grinding, CNC lathe, end lapper etc.

Applications:

Motorcycle, vehicle, automobile, hydraulic pressure

Competitive Advantage:

1. Can carry on the synchronized development design according to demand

2. Technical consultation

3. Strictly quality control system

4. 7days 24 hours on line service

5. Perfect material purchasing channels

6. Look for better way to reduce cost and offer competitive price

7. PPM≤60

Production Process:

Picture show:

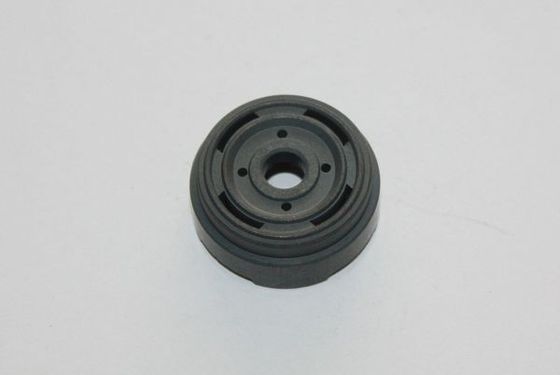

FC-0208 / FC-0205 Sinter Metal Powder Foot Valve Applied In Automotive Shocks 1

FC-0208 / FC-0205 Sinter Metal Powder Foot Valve Applied In Automotive Shocks 2
