Customized PTFE piston band 375 ℃ Sintering Temperature applied in car rear shocks

MOQ: 1,000pcs
Price: negotiation
Standard Packaging: According to customer’s demand
Delivery Period: Two weeks after payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 30,000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XIAYI
Certification
ISO9001:2008
Model Number
Φ31.05mm
Product Name:
Banded Piston
Filler Of Bands:
Customized
Material Of Bands:
PTFE Or Improved PTFE
Color:
Black
Application:
Car Rear Shocks
Density Of Bands:
2.15 G/cm3
Outer Diameter:
46mm
Sintering Temp.:
375 ℃
Highlight:

banded piston

,

damper piston

Product Description

Customized PTFE piston band 375 ℃ Sintering Temperature applied in car rear shocks


Specifications:


Physical performance for shock piston

tensile strength

More than 18MPa

elongation @ break

More than 160%

shore hardness (bands)

57 - 61

density

2.06 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.2

hardness (sinter piston)

HRB60-80

Technical requirements for sinter piston

Raw material F50 - U3 - 66 or FC - 0208

Steam treatment

OD tested by digital air gauge



Description:


Xia Yi, found in 2006, after several years’ effort, we have achieved great success in the enterprise. We

increased our workshop this year and developed several new automatic machines which highly improve

work efficiency. We have a technical team to develop automatic machine and we improve our pressing

machine and other machines to lower the cost and improve efficiency.


XIAYI company is specialized in design and producing PTFE banded shock absorber pistons,at the same

time,we design and manufacture automatic skirting machines.

Till now we have produced so many different types of shock absorber pistons with the diameter from

ø20mm~ø50mm.We make PTFE discs and toolings in our own factory,can control the quality effectively

and also can save much time.

D46 PISTON:

RAW MATERIAL OF SINTER PARTS:IRON BASED,IRON & COPPER BASED,COPPER

BASED,STAINLESS STEEL BASED

RAW MATERIAL OF PTFE DISC:

PTFE+BRONZE

PTFE+CARBON

PTFE+GLASS FIBER

PTFE+OTHER fillers according to cutomers’ demand

The detail information of the pistons:

1.Used in front shock absorbers

2.When temperature reach 100℃,expansion ratio ≤+/-1%

3.Using the testing ring,with the shock absorber oil,max frictional force is 15N

4.Piston can get through freely of the certain size of cylinder with 2N force

5.PTFE tensile strength ≥18MPa,elongation @ break ≥200%

6.Tight integration between piston and PTFE disc.PTFE won't fall off when working in the cylinder.


Applications:

Car or motorbike shock absorbers


Competitive Advantage:

1. Consistency in size

2. Infrared ray detect the diameter

3. Strict control plan

4.100% testing for outer diameter


Picture show:

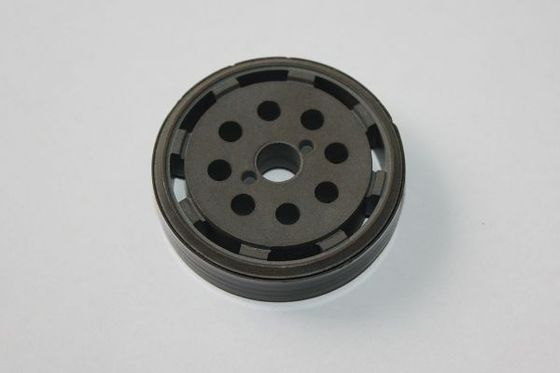

Customized PTFE piston band 375 ℃ Sintering Temperature applied in car rear shocks 0

Customized PTFE piston band 375 ℃ Sintering Temperature applied in car rear shocks 1
