| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ36mm |
| Minimum Order Quantity: | 1,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30,000 pcs per month |
| Product Name: | Banded Piston | Filler Of Bands: | Carbon Fiber Or Customized |
|---|---|---|---|
| Main Material: | PTFE | Color: | Black |
| Application: | Car Shocks | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 36mm | Hardness: | HRB57-61 |
| High Light: | shock absorber parts,damper piston |
||
Skew oil hole design banded piston with skirting PTFE used in car shocks
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
High quality shock absorber piston, used in various cars and trucks
Properties of banding ring can be tested in our company, we have the following test equipment:
Tensile strength testing machine, friction & abrasion testing machine, density balance, coefficient of linear
expansion testing machine and so on.
We also design and manufacture non-standard testing machine which can do blow-off test after banding.
Adhesion test: ring must be tested in shock absorber according to characteristics below:
Piston must have a minimum diameter of groove.
---pressure tube must have maximum internal diameter
---traction force from 4700 to 5390 N and speed=1.5m/s according to condition below
---course =50mm
---frequency =574RPM
---moment must be applied at the end of piston rod = 3Nm
---temperature = 130/160℃
Ring withstand 10min without deformation on adhesion test.
Properties of the banding ring:
Density = 2.03-2.110g/cm3
Hardness = 57-61 shore “D”
Tensile strength = 16Mpa minimum
Elongation = 300% minimum
(1)Advantage of powder metallurgy:
Unique chemical composition and mechanical physical properties
(2)Advantage of PTFE:
Chemical and aging resistance, temperature endurance and no-sticky performance
(3)Advantage of piston:
High carrying capacity, good wear resistance, low friction coefficient, good seal and so on
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Proper fillers can reach good seal and friction
Tooling designed by XIAYI can assure the delivery date
A whole set of testing equipment

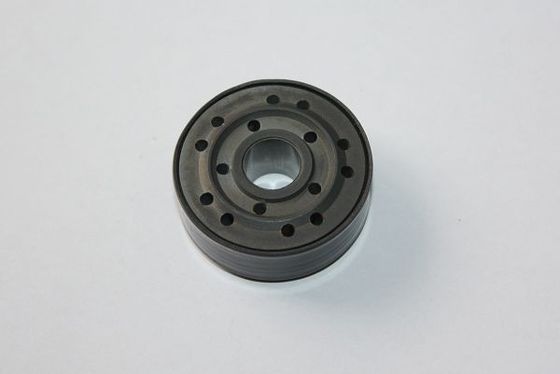

Picture show:
