| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | ISO9001:2008 |
| Model Number: | Φ40mm |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | According to customer’s demand |
| Delivery Time: | Two weeks after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1,000,000pcs per month |
| Product Name: | Shock Absorber Piston | Filler Of Bands: | Carbon Fiber |
|---|---|---|---|
| Material Of Bands: | PTFE | Color: | Black |
| Application: | Benz Shocks | Density Of Bands: | 2.15 G/cm3 |
| Outer Diameter: | 40.05mm | Working Temp.: | 260 ℃ |
| Highlight: | banded piston,damper piston |
||
40mm shock absorber piston ring kit used in automotive with good damping effect
Specifications:
|
Physical performance for shock piston |
tensile strength |
More than 18MPa |
|
elongation @ break |
More than 160% |
|
|
shore hardness (bands) |
57 - 61 |
|
|
density |
2.06 – 2.19 g/cm3 |
|
|
wear |
Less than 50mg |
|
|
friction coefficient |
Less than 0.2 |
|
|
hardness (sinter piston) |
HRB60-80 |
|
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
|
Steam treatment |
||
|
OD tested by digital air gauge |
||
Description:
dimension 40mm shock absorber piston kit used in different automotives
choose imported raw material
pistons are used in Honda cars
XIAYI banding technology
Conventional Design
(1) Finished OD Tolerance of +/-50 Microns
(2) Requires Purchase and Inventory of Banding
(3) Requires Secondary Operations
(4) Banding Can Dislodge or Shift
(5) Potential for Uncontrolled Leak Paths
XIAYI is a professional team,producing different sizes of shock absorber pistons.
We can design and produce new samples and also we can produce full automatic banding machines
which are used to produce banded shock pistons.
There is a laboratory, we can do some tests for different fillers and raw material.We have plenty of testing
machines such as tensile strength testing machine, abrasion
testing machine, friction & blow-off testing machine(we produce this machine by ourselves,this is non-
standard testing machine which are used to test banded shock pistons).
We do our works with our heart and soul and we have confident to supply you products with good quality
and best survice.
We produce automatic banding machine by ourselves and we have related testing equipment such as
projector, analytical balance, friction-abrasion testing machine, blow-off testing machine, friction testing
machine and so on.We can test most of properties in our company and others we can’t test we will send
the standard sample blocks to Shanghai Plastics Research Institute.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
Unique material for shock piston bands
Pistons are produced by automatic banding machine can assure the consistency of the size
Complete testing equipment

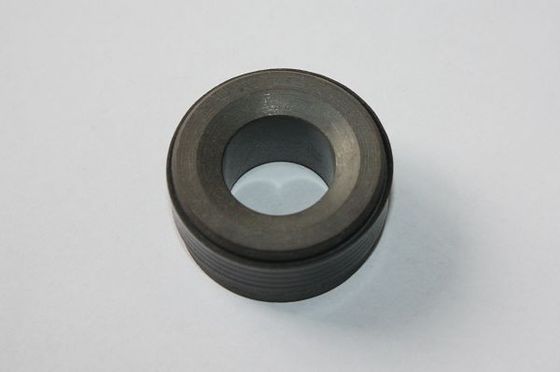

Picture show:
