Automatic friction and blow - off testing machine for testing PTFE banding piston

MOQ:	1 SET
Price:	NEGOTIATION
Standard Packaging:	STANDARD EXPORTING PACKAGE WITH WOODEN BOX
Delivery Period:	3-4 MONTHS
Payment Method:	L/C, T/T
Supply Capacity:	1 SET PER 3 MONTHS

Detail Information

Product Description

Detail Information

Place of Origin

ZHE JIANG , CHINA

Brand Name

XIAYI

Certification

ISO9001:2008

Model Number

XYJD-FM01B

MACHINE TYPE:

TESTING

RAW MATERIAL:

STEEL AND OTHERS

LATERAL LOAD:

4.6-5.6KN

ROD OD:

MEDIA:

AUTOMATION:

AUTOMATIC

Highlight:

automatic grooving machine

shock absorber machine

Product Description

Automatic friction and blow - off testing machine for testing PTFE banding piston

Purpose of this test:

to determine the friction for PTFE banded piston when adding different weights. The test is performed with a constant lateral force applied to the piston during the pressure build up over the piston. Automatically get the average friction after testing five cycles.

Test method:

1. Put the testing tube into shock absorber oil to assure the oil in the ID of the tube.

2. Fix the piston into the piston rod

3. Put the piston rod and testing tube into the working cylinder

4. Turn on the power and adjust to automatic mode

5. Open the software, set the following parameters:

Speed: 1mm/s

Distance: 60mm

Cycle: 5

6. Click button of alternating motion to test the machine fixtures. To confirm friction level is right and oil distributes well in ID

7. Don’t add the weights to confirm the fixtures at the initial place and make zero for the data.

8. Click button of alternating motion, piston will be moving at the stroke of ± 30mm with 5 cycles.

9. Add the weights of 7.5Kg, 15Kg, 22.5Kg, 45Kg, do the same testing as step above, record the data and curves.

10. Stop the testing, take down the weights and turn off the power.

Competitive advantage:

1.Can check the PTFE banding result

2.Easily operation

3.Machine design according to big shock absorber factory in the world

4.Can test friction and blow-off testing in the same testing machine

5.Can get the curves after testing

Application:

All PTFE banding piston with different size rang from 20mm to 45mm

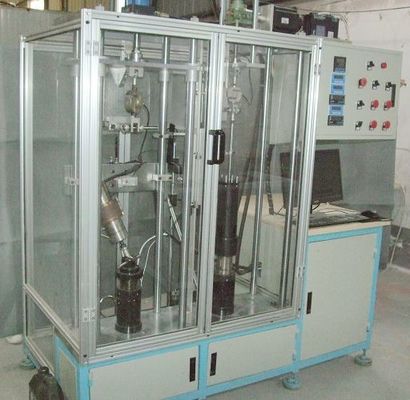

Picture show

Automatic friction and blow - off testing machine for testing PTFE banding piston 0
