Place of Origin: | China |
Brand Name: | XIAYI |
Certification: | IATF16949:2016 |
Model Number: | Φ50mm |
Minimum Order Quantity: | 1,000pcs |
---|---|
Price: | negotiation |
Packaging Details: | According to customer's demand |
Delivery Time: | Two weeks after payment |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 30,000 pcs per month |
Product Name: | Shock Piston | Filler Of Bands: | Customized |
---|---|---|---|
Material Of Bands: | PTFE Or Improved PTFE | Color: | Black |
Density Of Bands: | 2.15 G/cm3 | Outer Diameter: | 50mm |
Sintering Temp.: | Many Sections | Application: | Shock Absorbers |
Highlight: | Custom Sintering Shock Absorber Parts,Surface Oxidation Shock Absorber Parts,Automotives Custom Sintering Parts |
Custom Sintering Parts With Surface Oxidation Shock Absorber Parts For Automotives
XIAYI has established a leadership position for shock absorber pistons by focusing on delivering effective design solutions and highly reliable high volume manufacturing.
Excellent dimensional precision and surface finish, as well as a material selection matched to performance requirements, are only some of the advantages of the sintered shock absorber pistons.
ADVANTAGES
Design freedom due to net shape and complex geometry capability
Net shape digressive piston design – no machining required
Optional XIAYI banded piston technology
Engineered product – supplied ready to install
Piston Ø50mm, hole 12 mm for shock absorbers with different types.
With this kit we replace all entire stock inner piston, then you will get a clear step forward in terms of smoothness of the shock and a reduction of operating temperatures, thus helping to improve its performance during the whole race.
Conventional Design
Finished OD Tolerance of +/-20 Microns
Don't Require Secondary Operations
Banding Can Design with Single Lip or Double Lip
Potential for Uncontrolled Leak Paths
Dimension Bond Value Added Benefits
Tolerance +/-10 Microns
Wear Band Assembly Eliminated
Machining of Grooves Eliminated
Banding Materials Purchases Eliminated
Larger Baring Surface Area
No Banding to Dislodge, Shift, Split or Tear
No Uncontrolled Leak Paths
Allows For Shorter Overall Height & Less Metal Cost
Larger Diameter Valve Face Area for Design
Reduced Dead Length
Ease of Assembly into Pressure Tube
Greater Wear Resistance with Lower Friction
Specifications:
Physical performance for shock piston |
tensile strength |
More than 18MPa |
elongation @ break |
More than 160% |
|
shore hardness (bands) |
57 - 61 |
|
density |
2.06 – 2.19 g/cm3 |
|
wear |
Less than 50mg |
|
friction coefficient |
Less than 0.2 |
|
hardness (sinter piston) |
HRB60-80 |
|
Technical requirements for sinter piston |
Raw material F50 - U3 - 66 or FC - 0208 |
|
Steam treatment |
||
OD tested by digital air gauge |
The Piston Process
Step 1: 100% Laser Inspection of the as-received OD ensures the correct amount of material is applied, thus yielding the finished dimension desired.
Step 2: Computer-controlled application of the Permanently Bonded Band material.
Step 3: 100% Laser Inspection of the OD ensures the desired finished dimension is obtained after process curing the band material.
Step 4: Apply Permanently Bonded 100% pass-thru gauging of each finished piston to assure the piston meets Form-Fit and Functional requirements prior to packaging. Band material via computer controlled metering.
Step 5: Product ready for assembly.
Description:
XIAYI company is specialized in design and producing PTFE banded shock absorber pistons,at the same time,we design and manufacture automatic skirting machines. Till now we have produced so many different types of shock absorber pistons with the diameter from ø20mm~ø50mm.We make PTFE discs and toolings in our own factory,can control the quality effectively and also can save much time.
Applications:
Car or motorbike shock absorbers
Competitive Advantage:
1. Consistency in size
2. Infrared ray detect the diameter
3. Strict control plan
4.100% testing for outer diameter

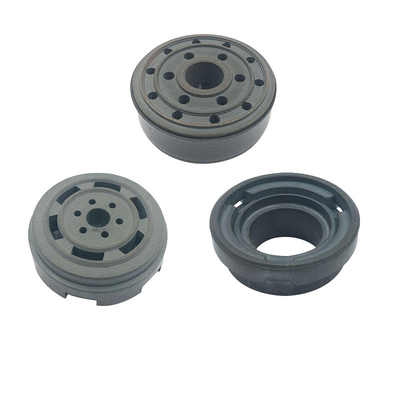

Picture show:
