| Place of Origin: | China |
| Brand Name: | XIAYI |
| Certification: | IATF16949:2016 |
| Model Number: | XYJD-PM0509Y |
| Minimum Order Quantity: | 1,000pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in plastic box one by one, then in carton with standard export package |
| Delivery Time: | 30 working days for new samples |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Foot Valve | Material: | Iron Based, Alloy |
|---|---|---|---|
| Sizing Tonnage: | 160T | Service: | OEM |
| Application: | Car Shocks | Plating: | Customized |
| Sample Time: | 25 DAYS | Treatment: | Steam Treatment |
| High Light: | Sintered Shock Absorber Base Valve,Shock Absorber Foot Valve,Honda Shock Base Valve 6.3 |
||

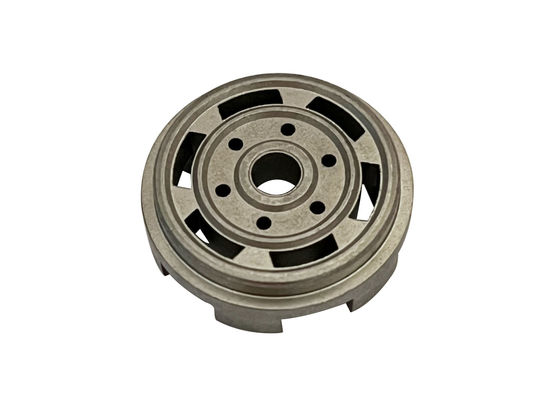

OEM Sintered Shock Absorber Base Valve With Density 6.3-6.9 Used In Honda Shocks
XIAYI company have several sets of professional equipment, including automatic powder forming machine, mesh belt sintering furnace, high precision CNC slow wire cutting which imported from Switzerland and CNC electric spark equipment. Meanwhile we introduced CAD to enhance our R&D strength and have a high capacity for developing, designing and manufacturing high standard molds. Our company is operating in strict accordance with IATF16949:2016 quality management system and 6S management is implemented in all plants.
Specifications:
|
Material |
Iron base steel |
|
Brass base steel |
|
|
According to customer drawing |
|
|
Surface treatment |
Sand Blasting |
|
Zinc/Chrome Plating |
|
|
Rust-preventive treatment (steaming treating) |
|
|
Painting |
|
|
Electrophoresis |
|
|
Powder Coating |
Advantages of the powder metallurgy process:
By producing parts with a homogeneous structure the powder metallurgy process enables manufactures to make products that are more consistent and predictable in their behaviour across a wide range of applications. In addition the powder metallurgy process has a high degree of flexibility allowing the tailoring of the physical characteristics of a product to suit the specific property and performance requirements which including the followings:
1)Structural pieces with complex shapes
2)Controlled porosity
3)Controlled performance
4)Good performance in stress and absorbing of vibrations
5)Special properties such as hardness and wear resistance
6)Great precision and good surface finishing
7)Large series of pieces with narrow tolerances
The unique flexibility of the powder metallurgy process enables products to be made from materials that are tailored to your specific needs. By using specially selected materials this capability enables refinements to be engineered into the mechanical properties of the part.
Production process:
Mixing powder
Compacting
Sintering
Sizing
Machining
Pressing bushing
Steam treatment
Inspection
Packing and delivey
 |
| D1 | D2 | H |
| 23.8 | 16 | 10.7 |
| 25 | 18 | 7.5 |
| 25.8 | 16 | 13.7 |
| 28.8 | 16 | 15 |
| 30.8 | 16 | 15 |
| 30.8 | 16 | 17.5 |
| 33.3 | 16 | 18.5 |
| 34.3 | 20 | 15 |
| 39.5 | 25 | 9.2 |
| 49.5 | 25 | 11.5 |
|
| D1 | D2 | H | N-d |
| 25 | 6 | 11 | 5-ø1.5 |
| 25 | 5 | 12 | 6-ø1.6 |
| 27 | 4 | 10 | 3-ø1.7 |
| 27 | 5 | 12 | 6-ø1.6 |
| 30 | 5 | 11 | 6-ø2.2 |
| 30 | 5 | 11 | 6-ø2.5 |
| 30 | 5 | 12 | 6-ø2.2 |
| 30 | 5 | 11 | 4-ø1.5 |
| 30 | 5 | 11.6 | 6-ø1.8 |
| 30 | 6 | 14 | 6-ø2 |
| 31 | 5 | 11 | 6-ø1.8 |
| 32 | 5 | 11 | 6-ø2.5 |
| 32 | 5 | 11 | 6-ø2.3 |
| 35 | 5 | 10.6 | 6-ø1.8 |
| 35 | 5 | 11 | 6-ø2 |
| 35 | 6 | 14 | 6-ø2 |
| 36 | 5 | 11 | 6-ø2 |
| 40 | 6 | 13 | 6-ø2.5 |
| 50 | 8 | 15 | 6-ø2.5 |
Applications:
Automotive Part
Motorcycle Part
Metal Powder Sintered Parts
Locomotive Parts
Machinery Parts
Tool Parts
Competitive Advantage:
|
Experience Equipments |
High-low temperature equipment |
|
vibration test stand |
|
|
Durability test |
|
|
Performance simulation test bench |
|
|
X-ray material testing equipment |
|
|
Hardness testing |
|
|
Roughness testing |
|
|
Other special customized experience equipments for powder metallurgy parts. |
Picture show:
|
