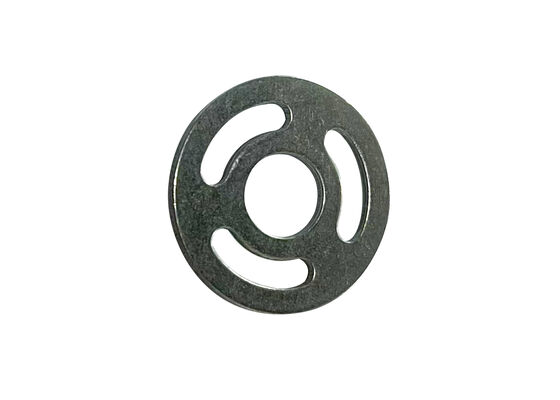

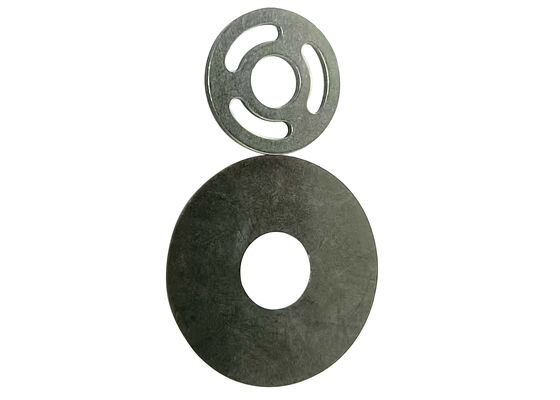

Shock Valve Shims designed to deliver precise thickness control and resistance to deformation improving valve assembly reliability

Product Description:

The Shock Valve Shims are precision-engineered components designed to enhance the performance and reliability of hydraulic shock absorbers and valve systems. Manufactured using advanced stamping techniques, these shims offer exceptional durability and consistent quality, making them an essential part of high-performance suspension systems and industrial valve assemblies. With a hardness rating ranging from HRC 40 to 60, these shims provide the perfect balance between toughness and flexibility, ensuring long-lasting wear resistance and optimal valve operation under various conditions.

One of the key features of these Shock Valve Shims is their wide size range, accommodating dimensions from as small as 8mm up to 500mm. This extensive size availability allows for seamless integration with OEM specifications, providing a custom fit for a variety of applications. Whether you require shims for automotive shock valves, heavy machinery, or specialized industrial valves, these components can be tailored to meet precise dimensional requirements, ensuring compatibility and performance efficiency.

The manufacturing craft employed in producing these shims is stamping, a process known for its high precision and repeatability. Stamping ensures each shim maintains consistent thickness and dimension, which is critical for maintaining proper valve clearances and fluid flow dynamics. This level of precision contributes significantly to the overall effectiveness of the valving system, reducing wear and tear on other valve components and extending the service life of the entire assembly.

In addition to the Shock Valve Shims themselves, the product line also includes complementary components such as Trim Rings and Retaining Rings. Trim Rings are utilized to fine-tune the valve's flow characteristics, allowing engineers to adjust the responsiveness and damping properties of the shock absorber or valve. These rings work in conjunction with the shims to create a highly customizable valving setup, tailored to the specific needs of the application.

Retaining Rings play a crucial role in securing the shims and trim rings in place within the valve assembly. Their robust design ensures that all components remain properly aligned and fixed during operation, preventing displacement or loosening that could compromise valve performance. By using high-quality retaining rings alongside the shims and trim rings, the overall integrity and reliability of the valve system are greatly enhanced.

Another notable advantage of these Shock Valve Shims is the relatively short sample time, typically ranging from 10 to 15 days. This quick turnaround enables rapid prototyping and testing, facilitating faster development cycles and product iterations. Manufacturers and engineers can rapidly assess the suitability of the shims within their valve designs, making necessary adjustments without significant delays.

Overall, the Shock Valve Shims, along with their associated Trim Rings and Retaining Rings, represent a comprehensive solution for optimizing valve performance in a variety of industrial and automotive applications. Their precise stamping craftsmanship, customizable OEM dimensions, and robust hardness rating combine to deliver components that meet the highest standards of quality and functionality. Whether you are upgrading existing valve assemblies or designing new shock absorber systems, these shims provide a dependable foundation for superior valve control and durability.

Features:

• Product Name: Shock Valve Shims
• Surface Finish: Polished for enhanced durability and smooth operation
• Manufacturing Technology: Etching or Stamping and Line Cutting for precise shaping
• Compliance with Standards: GB, DIN, JIS, ANSI ensuring high quality and compatibility
• Dimension: OEM specifications tailored to fit specific shock absorber models
• Craft: Stamping process for consistent and reliable shock valve shims
• Application: Essential Shock Absorber Components designed to optimize shock absorber performance

Technical Parameters:

Applications:

The XIAYI Shock Valve Shims are essential components widely used in various industrial and mechanical applications, particularly in the manufacturing and maintenance of shock absorber components. Engineered with precision and certified under ISO9001:2008 standards, these shims boast exceptional hardness ranging from HRC 40 to 60, ensuring superior performance and durability. Their lightweight yet durable construction makes them ideal for environments where both resilience and efficiency are critical.

One of the primary application occasions for XIAYI Shock Valve Shims is in the assembly and repair of shock absorber components. These shims play a vital role in controlling the valve clearance and ensuring optimal damping performance, which is crucial for vehicle suspension systems and machinery subjected to dynamic loads. Their availability in sizes ranging from 8mm to 500mm allows for versatile use across different types of shock absorbers, accommodating a wide range of specifications.

In addition to shock absorber components, XIAYI Shock Valve Shims are frequently used alongside retaining rings in mechanical assemblies. The precise dimensions and hardness make these shims an excellent choice for maintaining the integrity and alignment of retaining rings, which are critical for securing components within cylindrical parts. This synergy enhances the overall reliability and longevity of mechanical systems in automotive, aerospace, and industrial machinery sectors.

The production of these shims adheres to stringent standards such as GB, DIN, JIS, and ANSI, ensuring compatibility and interchangeability with international systems. Each batch undergoes rigorous inspection processes including IQC (Incoming Quality Control), IPQC (In-Process Quality Control), FQC (Final Quality Control), and QA (Quality Assurance) to guarantee defect-free products that meet customer expectations.

Suitable for use in heavy machinery, automotive suspensions, industrial equipment, and other shock-absorbing applications, XIAYI Shock Valve Shims provide reliable support and precise adjustment capabilities. Their robust construction and compliance with international standards make them indispensable for engineers and technicians aiming for enhanced shock absorption efficiency and mechanical stability.

Customization:

XIAYI offers customized Shock Valve Shims with a focus on quality and precision. Our products are certified under ISO9001:2008, ensuring reliable performance and consistency. Each Shock Valve Shim undergoes thorough inspection processes including IQC, IPQC, FQC, and QA to meet the highest standards.

We specialize in manufacturing Trim Rings, Retaining Rings, and Washer Shims tailored to your specific requirements. Our shims can withstand temperatures ranging from -40°C to 150°C, making them suitable for various demanding applications.

Available in sizes from 8mm to 500mm, our Shock Valve Shims can be produced using milling or machining techniques to achieve the exact dimensions and tolerances you need. Sample production time typically ranges from 10 to 15 days, allowing for quick prototyping and evaluation.

Trust XIAYI for your Shock Valve Shim customization needs, delivering durable and precise components including Trim Rings, Retaining Rings, and Washer Shims designed to enhance your valve performance.

Support and Services:

Our Shock Valve Shims are precision-engineered components designed to provide optimal performance and durability in shock absorption systems. For technical support, please ensure that you have the product model number and specifications ready when seeking assistance.

Installation of Shock Valve Shims should be performed by qualified technicians familiar with shock absorber maintenance to ensure correct fitment and function. Use only recommended tools and follow manufacturer guidelines to avoid damage or improper operation.

For maintenance, regularly inspect the shims for signs of wear, deformation, or corrosion. Replace any damaged shims promptly to maintain the integrity and performance of your shock absorber system.

If you encounter any issues with the Shock Valve Shims, such as unusual noise, reduced shock absorption, or fitment problems, consult the troubleshooting section of the product manual or contact technical support for guidance.

We recommend using only genuine replacement parts to ensure compatibility and performance. Our technical support team is available to provide detailed product information, installation advice, and troubleshooting assistance to help you achieve the best results with your Shock Valve Shims.

Packing and Shipping:

Each Shock Valve Shim is carefully packaged to ensure it arrives in perfect condition. The shims are placed in a protective plastic sleeve and then secured within a sturdy box to prevent any damage during transit.

We offer reliable shipping options with tracking available for all orders. Your Shock Valve Shims will be shipped promptly, typically within 1-2 business days after order confirmation.

Shipping methods may vary based on your location, and delivery times usually range from 3 to 7 business days. International shipping is available with estimated delivery times depending on customs processing.

We take great care in packaging and shipping to provide you with the best possible experience and ensure your Shock Valve Shims arrive safely and ready for use.

FAQ:

Q1: What brand manufactures the Shock Valve Shims?

A1: The Shock Valve Shims are manufactured by the brand XIAYI.

Q2: Are the Shock Valve Shims certified?

A2: Yes, the Shock Valve Shims are certified under IATF16949, ensuring quality and reliability.

Q3: What is the purpose of using Shock Valve Shims?

A3: Shock Valve Shims are used to adjust and fine-tune the valve clearance in shock absorbers for optimal performance.

Q4: Are these shims compatible with all types of shock absorbers?

A4: Compatibility depends on the specific shock absorber model. It is recommended to check the specifications or consult with XIAYI support to ensure proper fitment.

Q5: How do I install the Shock Valve Shims?

A5: Installation typically involves disassembling the shock absorber to access the valve, then placing the shims as required to adjust the clearance. It is advised to follow the manufacturer's instructions or seek professional assistance.
